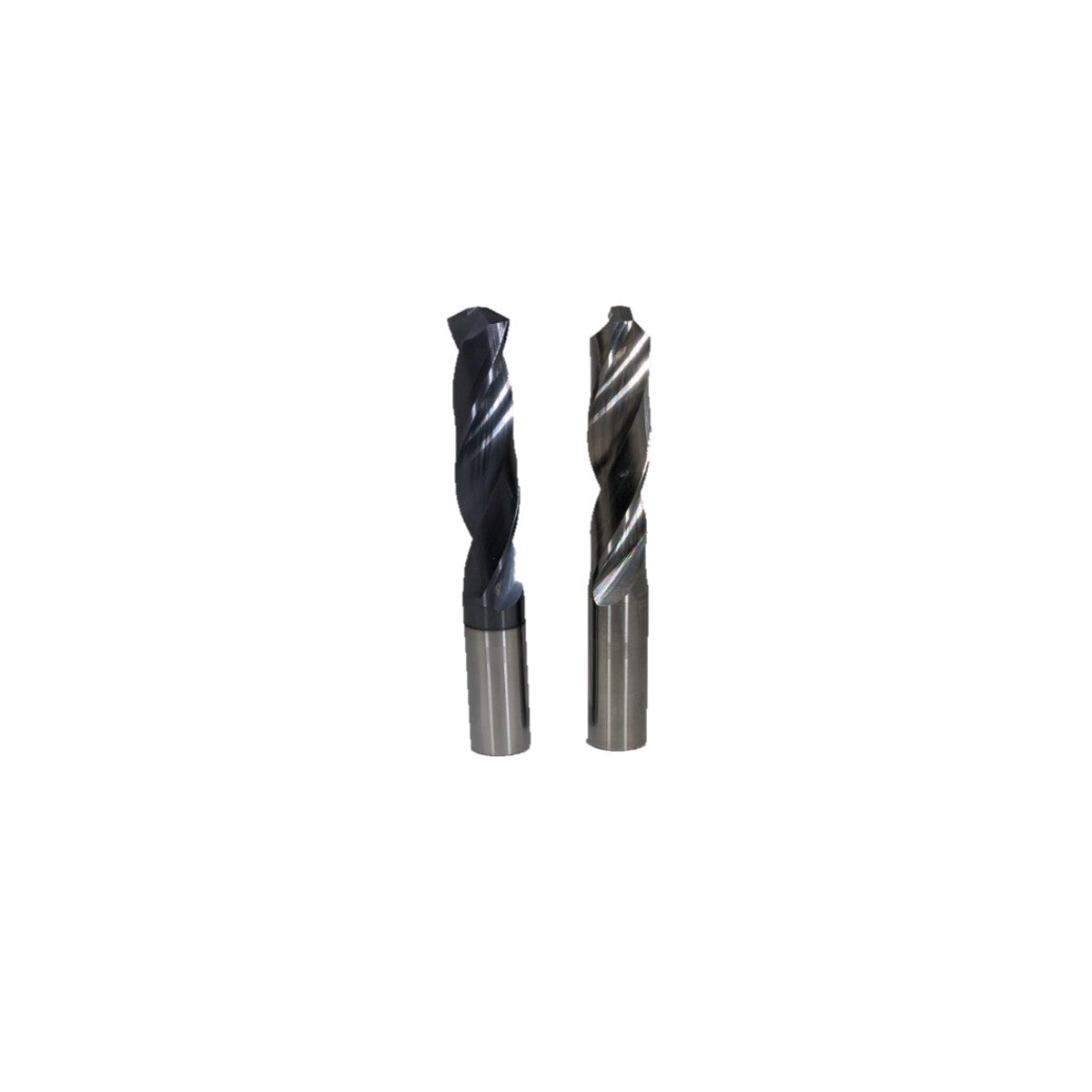

Drills - Jobber Length

$12.99 USD
$12.99 USD
Sale Sold out
Shipping calculated at checkout.
Made in USA. Qty: 1. AlTiN ( aluminium-titanium-nitride coating) : Oxidation Resistance and Thermal Stability. Protection against abrasion and adhesion. Good frictional properties. Read More

Type:Jobber Length Drills

Vendor: Carbidenow

- Made in USA

- Manufactured from premium submicron grain carbide

- Precision ground carbide drills are designed for

   high feed rate and good chip evacuation

- 118° four facet point angle, right hand cut, right hand spiral

Description Uncoated Coated
Fraction Decimal Flute Overall Bright Sale AlTiN Sale
Size Equiv. Length Length EDP# Price EDP# Price
1/64 0.0156 3/16 1-1/4 C30018 $12.99 C30019 $15.70
1/32 0.0312 5/16 1-1/4 C30066 $9.84 C30068 $12.47
3/64 0.0469 3/4 1-1/2 C30126 $8.58 C30128 $11.21
1/16 0.0625 3/4 1-1/2 C30158 $7.36 C30159 $9.61
5/64 0.0781 7/8 1-3/4 C30198 $8.58 C30199 $11.21
3/32 0.0938 1 2 C30242 $8.64 C30243 $11.09
7/64 0.1094 1-1/4 2-1/4 C30286 $9.84 C30287 $12.47
1/8 0.1250 1-1/4 2-1/4 C30326 $8.71 C30329 $10.97
9/64 0.1406 1-3/8 2-1/2 C30358 $10.39 C30359 $14.57
5/32 0.1562 1-3/8 2-1/2 C30398 $11.18 C30399 $15.36
11/64 0.1719 1-5/8 2-3/4 C30438 $12.59 C30439 $16.77
3/16 0.1875 1-5/8 2-3/4 C30478 $10.79 C30480 $14.38
13/64 0.2031 1-3/4 3 C30522 $15.66 C30523 $22.03
7/32 0.2187 1-3/4 3 C30558 $15.34 C30559 $21.25
15/64 0.2344 2.0 3-1/4 C30594 $18.89 C30595 $25.27
1/4 0.2500 2.0 3-1/4 C30626 $20.32 C30628 $23.00
17/64 0.2656 2-1/8 3-1/2 C30654 $25.19 C30655 $35.73
9/32 0.2812 2-1/8 3-1/2 C30690 $25.22 C30691 $34.95
19/64 0.2969 2-3/8 3-3/4 C30718 $30.47 C30719 $41.53
5/16 0.3125 2-3/8 3-3/4 C30742 $25.04 C30744 $34.08
21/64 0.3281 2-1/2 4 C30770 $32.04 C30771 $42.59
11/32 0.3438 2-1/2 4 C30798 $34.88 C30799 $46.73
23/64 0.3594 2-3/4 4-1/4 C30826 $40.23 C30827 $52.98
3/8 0.2750 2-3/4 4-1/4 C30850 $37.79 C30851 $48.79
25/64 0.3906 2-7/8 4-1/2 C30878 $49.13 C30879 $65.11
13/32 0.4062 2-7/8 4-1/2 C30906 $48.07 C30907 $65.18
27/64 0.4219 2-7/8 4-1/2 C30930 $58.81 C30931 $74.80
7/16 0.4375 2-7/8 4-1/2 C30950 $53.98 C30952 $67.68
29/64 0.4531 3 4-3/4 C30970 $67.87 C30971 $83.85
15/32 0.4688 3 4-3/4 C30990 $65.69 C30991 $80.44
31/64 0.4844 3 4-3/4 C31010 $81.88 C31011 $100.45
1/2 0.5000 3 4-3/4 C31026 $72.00 C31028 $87.25
17/32 0.5313 3 4-3/4 C31036 $141.20 C31032 $160.68
9/16 0.5625 4 6 C31034 $139.17 C31035 $158.65
37/64 0.5781 4 6 C31061 $179.35 C31064 $199.35
19/32 0.5937 4 6 C31038 $155.25 C31039 $181.20
39/64 0.6094 4 6 C31040 $165.80 C31045 $199.35
5/8 0.6250 4 6 C31042 $142.12 C31043 $170.87
21/32 0.6562 4 6 C31046 $165.80 C31047 $199.35
43/64 0.6719 4 6 C31085 $201.55 C31088 $234.93
11/16 0.6875 4 6 C31050 $186.05 C31051 $216.85
45/64 0.7031 4 6 C31091 $202.48 C31094 $236.01
23/32 0.7187 4 6 C31054 $186.90 C31055 $217.86
3/4 0.7500 4 6 C31066 $208.05 C31099 $228.56
25/32 0.7812 4 6 C31067 $279.79 C31068 $307.68
13/16 0.8125 4 6 C31107 $313.21 C31132 $348.02
7/8 0.8750 4 6 C31104 $259.80 C31105 $285.71
1.0 1.0000 4 6 C31074 $303.66 C31075 $357.13
