WNMG (Box of 10)
Regular price
$30.99 USD
Regular price
Sale price
$30.99 USD
Unit price
per
Shipping calculated at checkout.

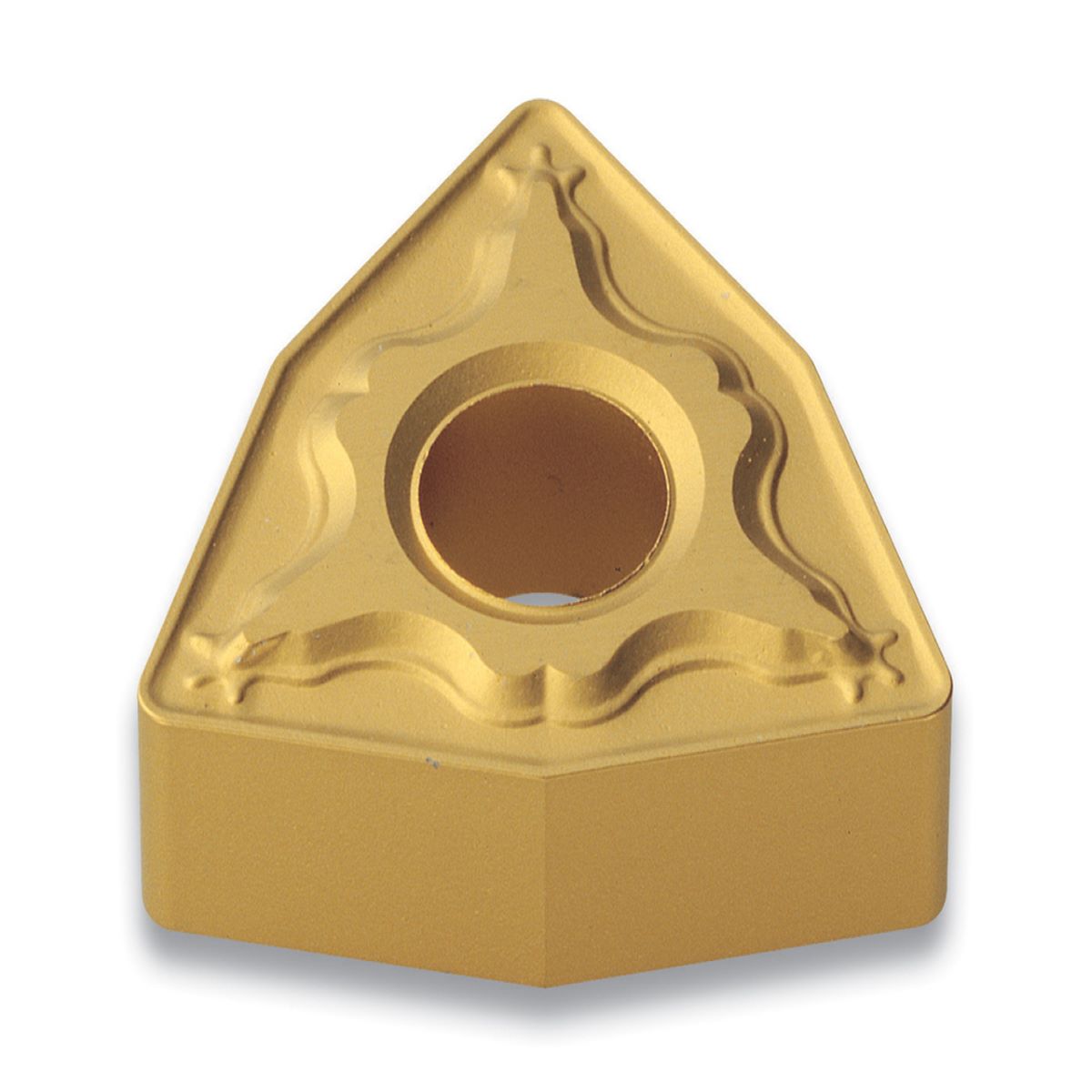

Price is for 10 Pc Box. Picture on display is of a Coated Insert.
C520 (C-2): General purpose grade designed for cast iron and non-ferrous materials.
C550 (C-5): Designed for heavy roughing to semi-finishing of all steels.
CM-14 (C5 Coated): Multi Layer coating TiN/TiC/TiCN/TiN for turning and milling carbon and alloy steels and tool steels. Provides longer tool life than uncoated grades.
Read More
Couldn't load pickup availability
Type:Turning Inserts
Vendor: Carbidenow
- 80° Trigon with chipbreaker - 0° Relief Angle
- Combo Pin and Clamp insert
- Medium machining stainless steel, cast iron and high temp alloys
| Insert Type | Dimensions | Uncoated Grade | Coated Grade | ||||||||
| Insert | Corner | Thru | C520 | C550 | Price | CM14 | Price | ||||
| Style | I.C. | Width | Radius | Hole | EDP# | EDP# | 10 Pc Box | EDP# | 10 Pc Box | ||
| WNMG-331 | 3/8 | 3/16 | 1/64 | 0.150 | C41921 | C41922 | $30.99 | C41913 | $39.99 | ||
| WNMG-332 | 3/8 | 3/16 | 1/32 | 0.150 | C41925 | C41926 | $30.99 | C41929 | $39.99 | ||
| WNMG-431 | 1/2 | 3/16 | 1/64 | 0.203 | C41924 | C41928 | $39.99 | C41932 | $52.99 | ||
| WNMG-432 | 1/2 | 3/16 | 1/32 | 0.203 | C41936 | C41940 | $39.99 | C41944 | $52.99 | ||
| WNMG-433 | 1/2 | 3/16 | 3/64 | 0.203 | ****** | ****** | ***** | C41945 | $56.99 |
