VNMG (Box of 10)
Regular price
$32.99 USD
Regular price
Sale price
$32.99 USD
Unit price
per
Shipping calculated at checkout.

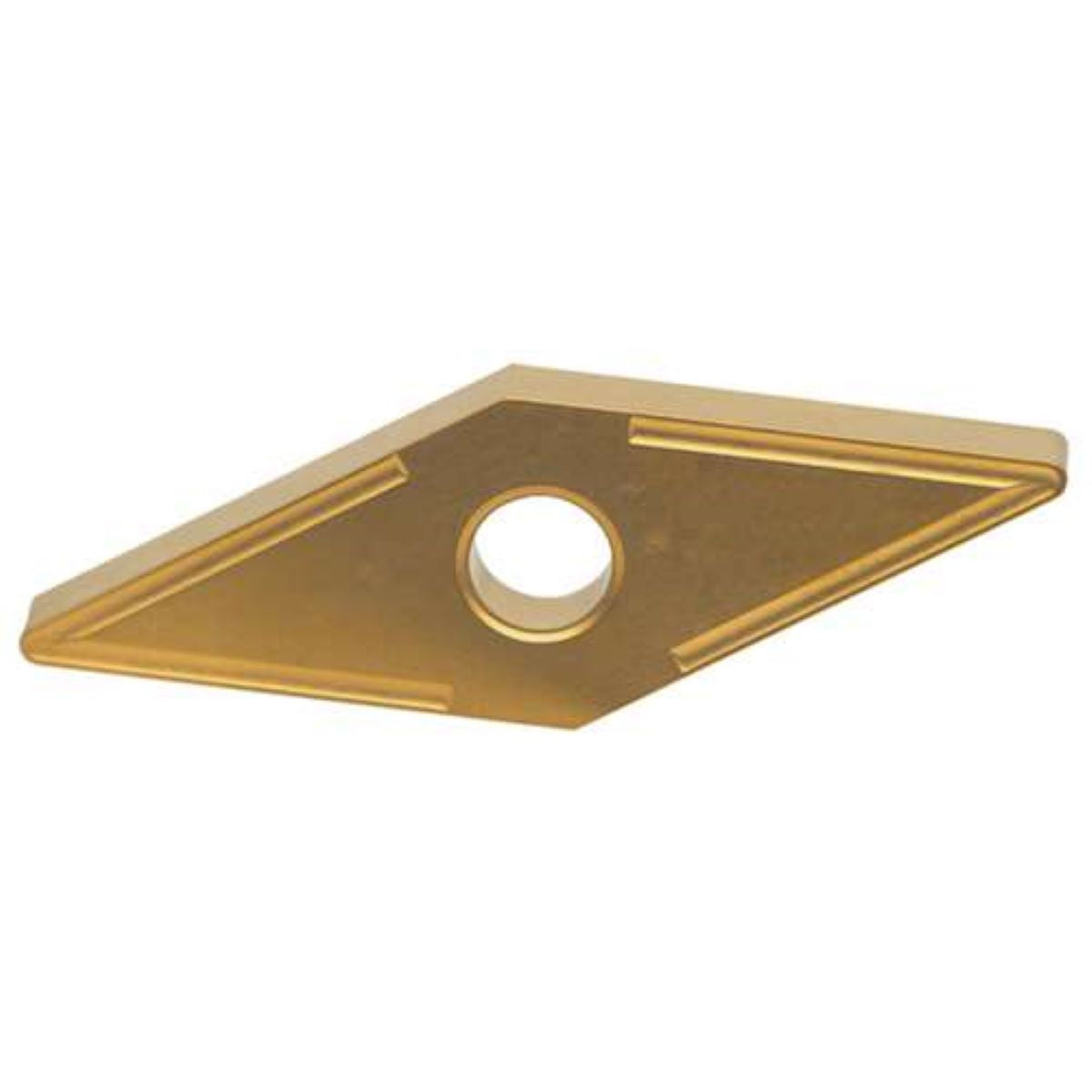

Price is for 10 Pc Box. Picture on display is of a Coated Insert.
C520 (C-2): General purpose grade designed for cast iron and non-ferrous materials.
C550 (C-5): Designed for heavy roughing to semi-finishing of all steels.
CM-14 (C5 Coated): Multi Layer coating TiN/TiC/TiCN/TiN for turning and milling carbon and alloy steels and tool steels. Provides longer tool life than uncoated grades.
Read More
Couldn't load pickup availability
Type:Turning Inserts
Vendor: Carbidenow
![carbide turning inserts VNMG](http://carbidenow.com/cdn/shop/products/vnmg_1445x.jpg?v=1649350271)
- 0° Relief Angle - Double sided insert with chipbreaker
- 35° Diamond - Combo Pin and Clamp Insert
- Used for turning and finishing
Insert Type | Dimensions | Uncoated Grade | Coated Grade | ||||||||
Insert | Corner | Thru | C520 | C550 | Price | CM14 | Price | ||||
Style | I.C. | Width | Radius | Hole | EDP# | EDP# | 10 Pc Box | EDP# | 10 Pc Box | ||
VNMG-331 | 3/8 | 3/16 | 1/64 | 0.150 | C41864 | C41868 | $32.99 | C41872 | $41.99 | ||
VNMG-332 | 3/8 | 3/16 | 1/32 | 0.150 | C41876 | C41880 | $32.99 | C41884 | $41.99 | ||
VNMG-431 | 1/2 | 3/16 | 1/64 | 0.203 | C41888 | C41892 | $56.99 | C41896 | $67.99 | ||
VNMG-432 | 1/2 | 3/16 | 1/32 | 0.203 | C41900 | C41904 | $56.99 | C41908 | $67.99 | ||
VNMG-433 | 1/2 | 3/16 | 3/64 | 0.203 | C41912 | C41916 | $56.99 | C41920 | $67.99 |
