TT (Box of 10)
Regular price
$18.99 USD
Regular price
Sale price
$18.99 USD
Unit price
per
Shipping calculated at checkout.

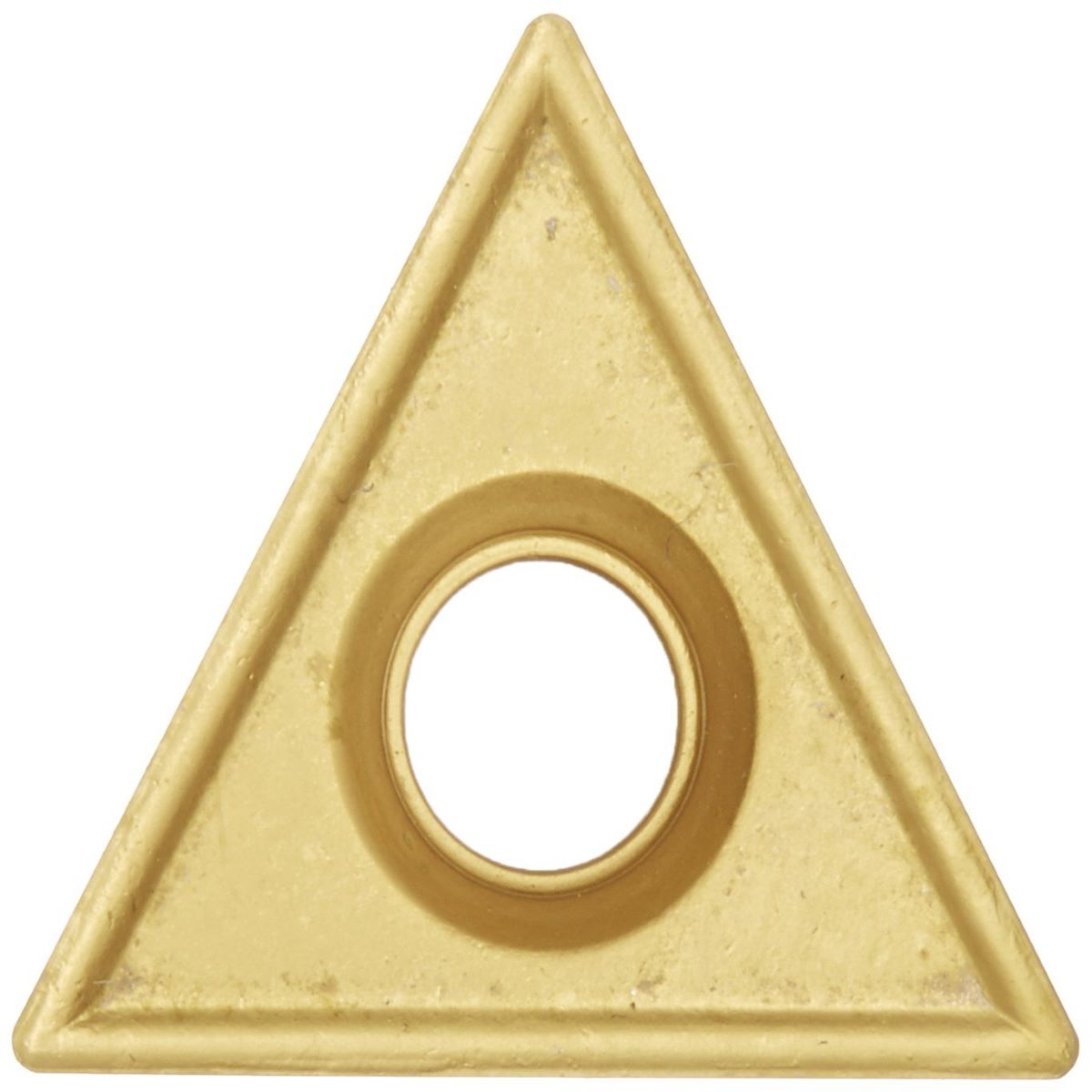

Price is for 10 Pc Box. Picture on display is of a Coated Insert.
C520 (C-2): General purpose grade designed for cast iron and non-ferrous materials.
C550 (C-5): Designed for heavy roughing to semi-finishing of all steels.
CM-14 (C5 Coated): Multi Layer coating TiN/TiC/TiCN/TiN for turning and milling carbon and alloy steels and tool steels. Provides longer tool life than uncoated grades.
Read More
Couldn't load pickup availability
Type:Turning Inserts
Vendor: Carbidenow
- Screw-On style insert - Triangle with chipbreaker
- Single sided insert
- 11° Relief Angle - Used for turning, facing and boring
| Insert Type | Dimensions | Uncoated Grade | Coated Grade | ||||||||
| Insert | Corner | Thru | C520 | C550 | Price | CM14 | Price | ||||
| Style | I.C. | Width | Radius | Hole | EDP# | EDP# | 10 Pc Box | EDP# | 10 Pc Box | ||
| TT-221 | 1/4 | 1/8 | 1/64 | 0.090 | C41768 | C41772 | $18.99 | C41776 | $25.99 | ||
| TT-222 | 1/4 | 1/8 | 1/32 | 0.090 | C41780 | C41784 | $19.99 | C41788 | $26.99 | ||
| TT-321 | 3/8 | 1/8 | 1/64 | 0.150 | C41792 | C41796 | $20.99 | C41800 | $26.99 | ||
| TT-322 | 3/8 | 1/8 | 1/32 | 0.150 | C41804 | C41808 | $20.99 | C41812 | $26.99 | ||
| TT-323 | 3/8 | 1/8 | 3/64 | 0.150 | C41816 | C41820 | $22.99 | C41824 | $28.99 | ||
| TT-431 | 1/2 | 3/16 | 1/64 | 0.203 | C41828 | C41832 | $26.99 | C41836 | $38.99 | ||
| TT-432 | 1/2 | 3/16 | 1/32 | 0.203 | C41840 | C41844 | $26.99 | C41848 | $38.99 | ||
| TT-433 | 1/2 | 3/16 | 3/64 | 0.203 | C41852 | C41856 | $27.99 | C41860 | $39.99 |
