TPU (Box of 10)
Regular price
$12.99 USD
Regular price
Sale price
$12.99 USD
Unit price
per
Shipping calculated at checkout.

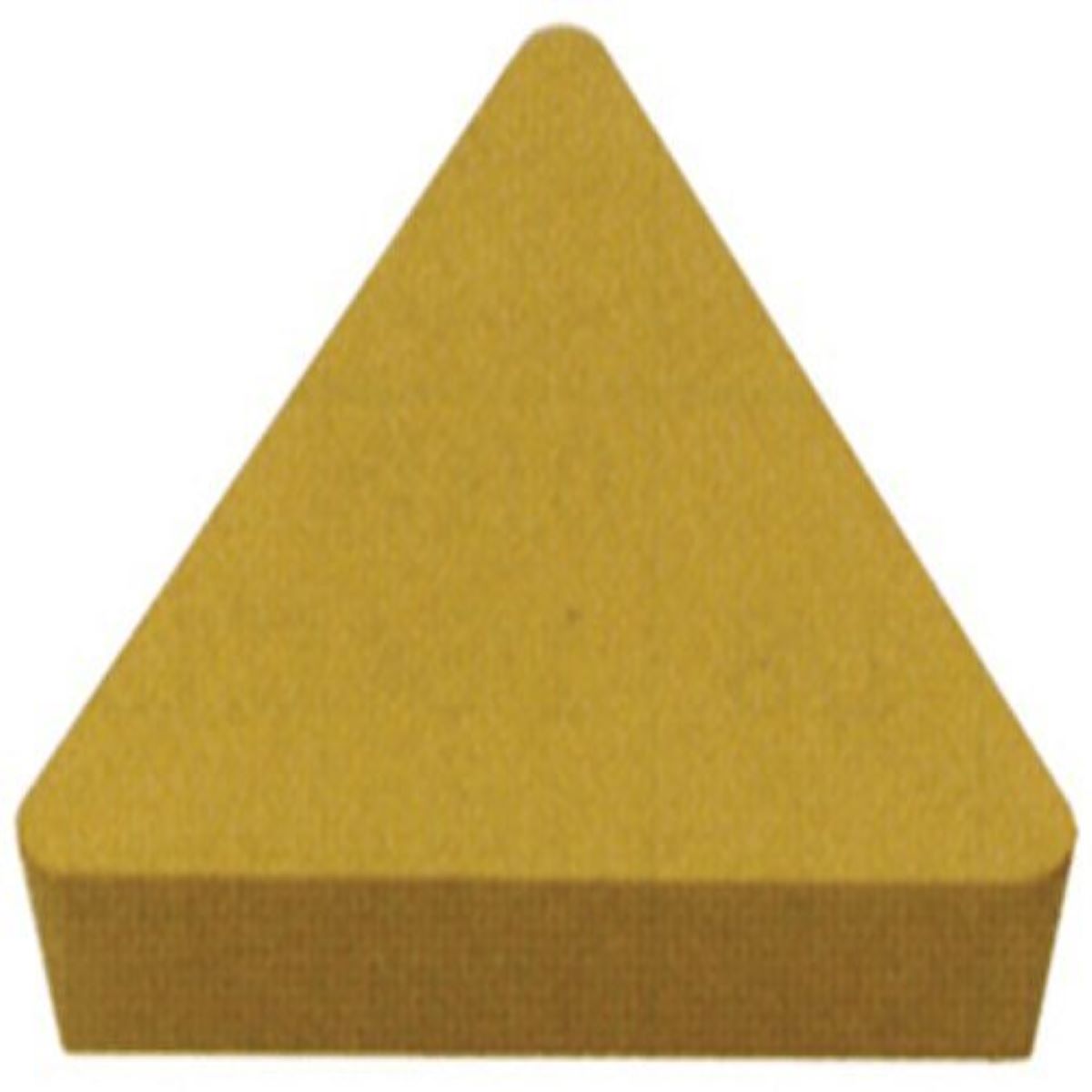

Price is for 10 Pc Box. Picture on display is of a Coated Insert.
C520 (C-2): General purpose grade designed for cast iron and non-ferrous materials.
C550 (C-5): Designed for heavy roughing to semi-finishing of all steels.
CM-14 (C5 Coated): Multi Layer coating TiN/TiC/TiCN/TiN for turning and milling carbon and alloy steels and tool steels. Provides longer tool life than uncoated grades.
Read More
Couldn't load pickup availability
Type:Turning Inserts
Vendor: Carbidenow
- Clamp style insert - 11° Relief Angle
- Triangle Ground Top and Bottom
- Single sided - Used for difficult to cut material
| Insert Type | Dimensions | Uncoated Grade | Coated Grade | ||||||||
| Insert | Corner | C520 | C550 | Price | CM14 | Price | |||||
| Style | I.C. | Width | Radius | EDP# | EDP# | 10 Pc Box | EDP# | 10 Pc Box | |||
| TPU-221 | 1/4 | 1/8 | 1/64 | C41648 | C41652 | $12.99 | C41656 | $21.99 | |||
| TPU-222 | 1/4 | 1/8 | 1/32 | C41660 | C41664 | $12.99 | C41668 | $21.99 | |||
| TPU-321 | 3/8 | 1/8 | 1/64 | C41672 | C41676 | $13.99 | C41680 | $22.99 | |||
| TPU-322 | 3/8 | 1/8 | 1/32 | C41684 | C41688 | $13.99 | C41692 | $22.99 | |||
| TPU-323 | 3/8 | 1/8 | 3/64 | C41696 | C41700 | $14.99 | C41704 | $23.99 | |||
| TPU-324 | 3/8 | 1/8 | 1/16 | C41708 | C41712 | $14.99 | C41716 | $23.99 | |||
| TPU-431 | 1/2 | 3/16 | 1/64 | ****** | ****** | ****** | C41718 | $44.99 | |||
| TPU-432 | 1/2 | 3/16 | 1/32 | C41732 | C41736 | $32.99 | C41740 | $43.99 | |||
| TPU-433 | 1/2 | 3/16 | 3/64 | C41744 | C41748 | $34.99 | C41752 | $44.99 | |||
| TPU-434 | 1/2 | 3/16 | 1/16 | C41756 | C41760 | $34.99 | C41764 | $44.99 |
