TPMC-NGR (Box of 10)
Regular price
$49.99 USD
Regular price
Sale price
$49.99 USD
Unit price
per
Shipping calculated at checkout.

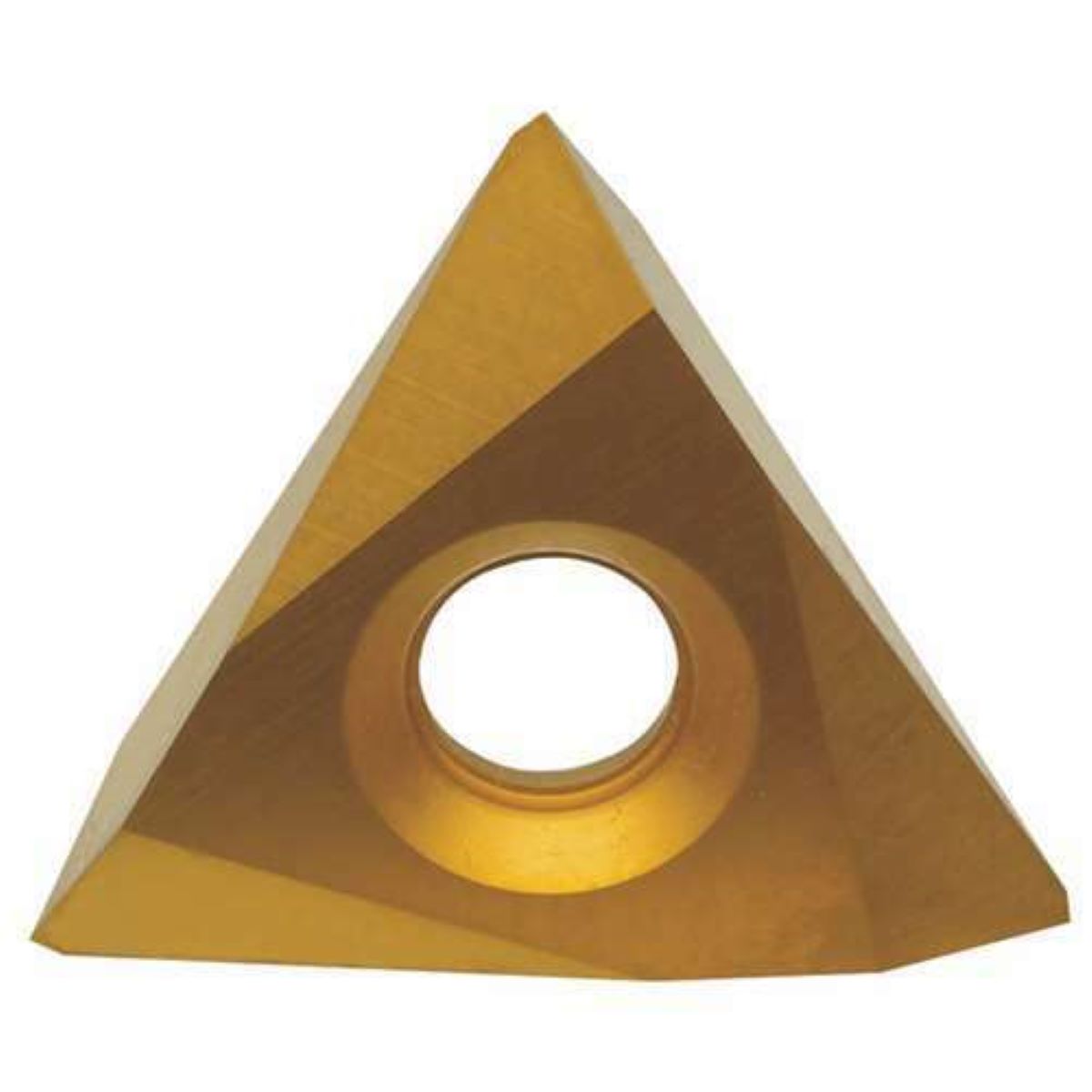

Price is for 10 Pc Box. Picture on display is of a Coated Insert.
C520 (C-2): General purpose grade designed for cast iron and non-ferrous materials.
C550 (C-5): Designed for heavy roughing to semi-finishing of all steels.
CM-14 (C5 Coated): Multi Layer coating TiN/TiC/TiCN/TiN for turning and milling carbon and alloy steels and tool steels. Provides longer tool life than uncoated grades.
Read More
Couldn't load pickup availability
Type:Threading & Grooving Inserts
Vendor: Carbidenow
- 10° Positive Rake Precision Ground with Countersink hole
- On-Edge Carbide Threading and Grooving Inserts
| Insert Type | Dimensions | Uncoated Grade | Coated Grade | ||||||||
| Insert | Groove | Depth | C520 | C550 | Price | CM14 | Price | ||||
| Style | I.C. | Thickness | Width | of Cut | EDP# | EDP# | 10 Pc Box | EDP# | 10 Pc Box | ||
| TPMC-32NGR 062 | 3/8 | 1/8 | 1/16 | 0.150 | C42980 | C42982 | $49.99 | C42986 | $59.99 | ||
| TPMC-32NGR 125 | 3/8 | 1/8 | 1/8 | 0.125 | C43906 | C43907 | $49.99 | C42987 | $59.99 | ||
| TPMC-43NGR 125 | 1/2 | 3/16 | 1/8 | 0.210 | C42988 | C42990 | $69.99 | C42994 | $80.99 | ||
| TPMC-43NGR 187 | 1/2 | 3/16 | 3/16 | 0.187 | C43910 | C43912 | $69.99 | C43920 | $80.99 | ||
| TPMC-54NGR 250 | 5/8 | 1/4 | 1/4 | 0.254 | C43916 | C43918 | $104.99 | C43922 | $116.99 |
