TPGB (Box of 10)
Regular price
$20.99 USD
Regular price
Sale price
$20.99 USD
Unit price
per

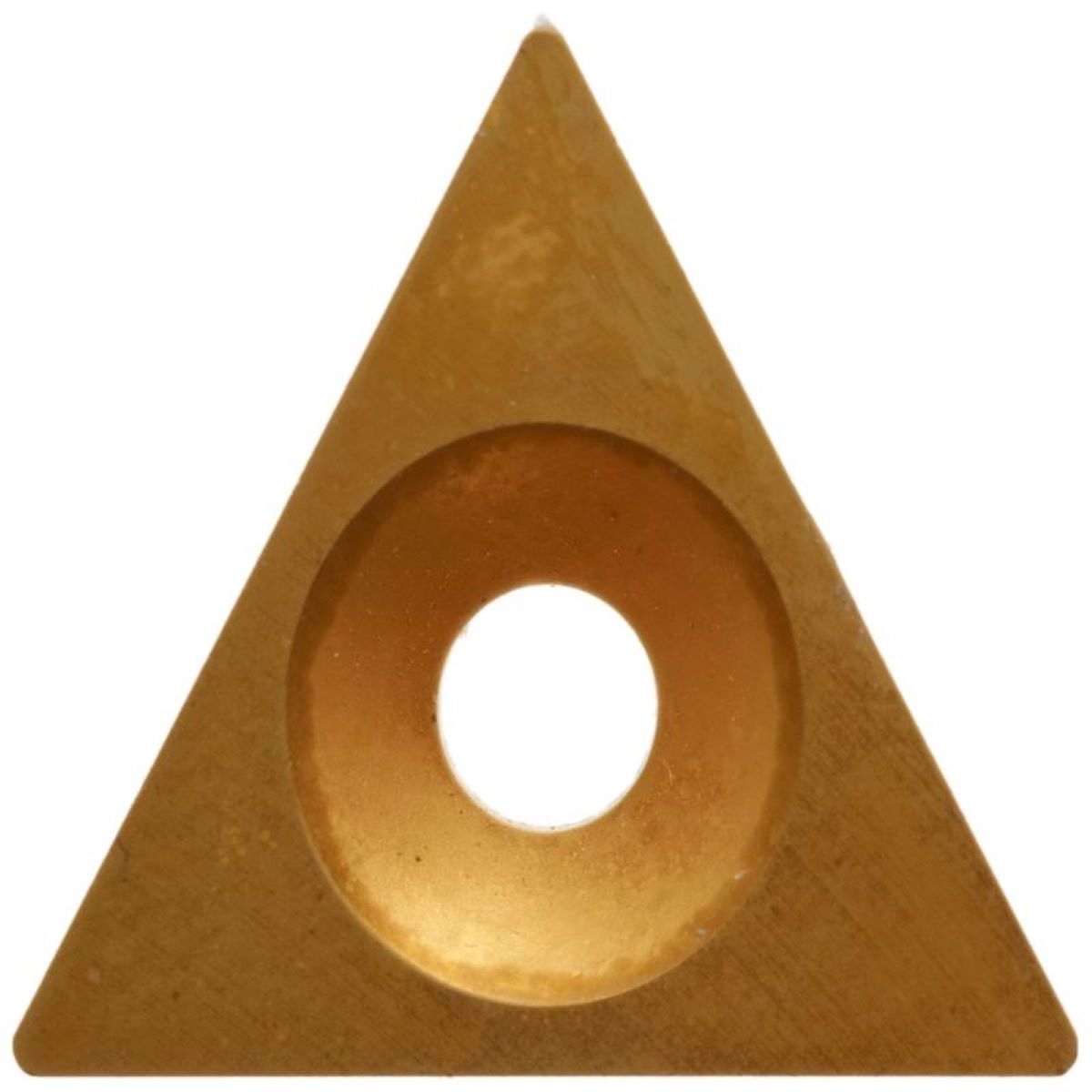

Price is for 10 Pc Box. Picture on display is of a Coated Insert.
C520 (C-2): General purpose grade designed for cast iron and non-ferrous materials.
C550 (C-5): Designed for heavy roughing to semi-finishing of all steels.
CM-14 (C5 Coated): Multi Layer coating TiN/TiC/TiCN/TiN for turning and milling carbon and alloy steels and tool steels. Provides longer tool life than uncoated grades.
Read More
Type:Turning Inserts
Vendor:
- Screw-On style insert - 11° Relief Angle
- Single sided without chipbreaker - Suitable for materials that create a short chip
- Triangle Positive Fully Grounded with Countersunk Hole
- Feed Range .003 to .012 IPR
Insert Type | Dimensions | Uncoated Grade | Coated Grade | ||||||||
Insert | Corner | Thru | C520 | C550 | Price | CM14 | Price | ||||
Style | I.C. | Width | Radius | Hole | EDP# | EDP# | 10 Pc Box | EDP# | 10 Pc Box | ||
TPGB-221 | 1/4 | 1/8 | 1/64 | 0.118 | C41336 | C41340 | $20.99 | C41344 | $26.99 | ||
TPGB-222 | 1/4 | 1/8 | 1/32 | 0.118 | C41348 | C41352 | $20.99 | C41356 | $26.99 | ||
TPGB-321 | 3/8 | 1/8 | 1/64 | 0.125 | C41360 | C41364 | $19.99 | C41368 | $26.99 | ||
TPGB-322 | 3/8 | 1/8 | 1/32 | 0.125 | C41372 | C41376 | $19.99 | C41380 | $26.99 |
