TNMP (Box of 10)
Regular price
$20.99 USD
Regular price
Sale price
$20.99 USD
Unit price
per
Shipping calculated at checkout.

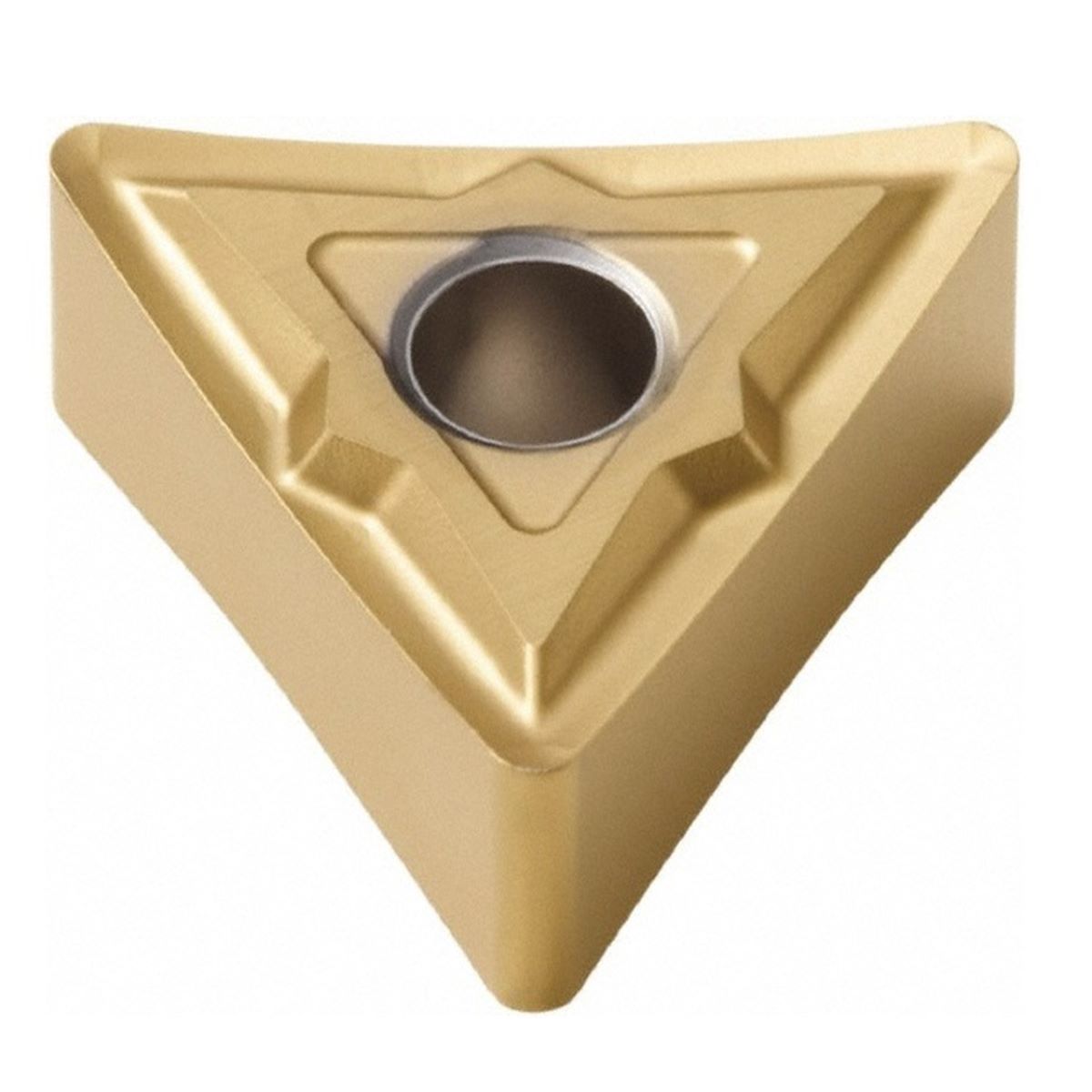

Price is for 10 Pc Box. Picture on display is of a Coated Insert.
C520 (C-2): General purpose grade designed for cast iron and non-ferrous materials.
C550 (C-5): Designed for heavy roughing to semi-finishing of all steels.
CM-14 (C5 Coated): Multi Layer coating TiN/TiC/TiCN/TiN for turning and milling carbon and alloy steels and tool steels. Provides longer tool life than uncoated grades.
Read More
Couldn't load pickup availability
Type:Turning Inserts
Vendor: Carbidenow
- Combo Pin and Clamp Insert
- 5° Positive Cutting Action double sided for semi-finishing and finishing
- Low cutting forces for machining soft materials and exotic alloys
- Feed Range .003 to .020 IPR
| Insert Type | Dimensions | Uncoated Grade | Coated Grade | ||||||||
| Insert | Corner | Thru | C520 | C550 | Price | CM14 | Price | ||||
| Style | I.C. | Width | Radius | Hole | EDP# | EDP# | 10 Pc Box | EDP# | 10 Pc Box | ||
| TNMP-321 | 3/8 | 1/8 | 1/64 | 0.150 | C42596 | C42598 | $20.99 | C42602 | $29.99 | ||
| TNMP-322 | 3/8 | 1/8 | 1/32 | 0.150 | C42604 | C42606 | $20.99 | C42610 | $29.99 | ||
| TNMP-323 | 3/8 | 1/8 | 3/64 | 0.150 | C42612 | C42614 | $20.99 | C42618 | $29.99 | ||
| TNMP-324 | 3/8 | 1/8 | 1/16 | 0.150 | C42620 | C42622 | $20.99 | C42626 | $29.99 | ||
| TNMP-331 | 3/8 | 3/16 | 1/64 | 0.150 | C42628 | C42630 | $30.99 | C42634 | $39.99 | ||
| TNMP-332 | 3/8 | 3/16 | 1/32 | 0.150 | C42636 | C42638 | $30.99 | C42642 | $39.99 | ||
| TNMP-333 | 3/8 | 3/16 | 3/64 | 0.150 | C42644 | C42646 | $30.99 | C42650 | $39.99 | ||
| TNMP-431 | 1/2 | 3/16 | 1/64 | 0.203 | C42652 | C42654 | $44.95 | C42658 | $54.99 | ||
| TNMP-432 | 1/2 | 3/16 | 1/32 | 0.203 | C42660 | C42662 | $44.99 | C42666 | $54.99 | ||
| TNMP-433 | 1/2 | 3/16 | 3/64 | 0.203 | C42668 | C42670 | $44.99 | C42674 | $54.99 | ||
| TNMP-434 | 1/2 | 3/16 | 1/16 | 0.203 | C42676 | C42678 | $44.99 | C42682 | $54.99 | ||
| TNMP-542 | 5/8 | 1/4 | 1/32 | 0.250 | C42684 | C42686 | $69.99 | C42690 | $80.99 | ||
| TNMP-543 | 5/8 | 1/4 | 3/64 | 0.250 | C42692 | C42694 | $69.99 | C42698 | $80.99 | ||
| TNMP-544 | 5/8 | 1/4 | 1/16 | 0.250 | C42700 | C42702 | $69.99 | C42706 | $80.99 |
