TNMG (Box of 10)
Regular price
$20.99 USD
Regular price
Sale price
$20.99 USD
Unit price
per
Shipping calculated at checkout.

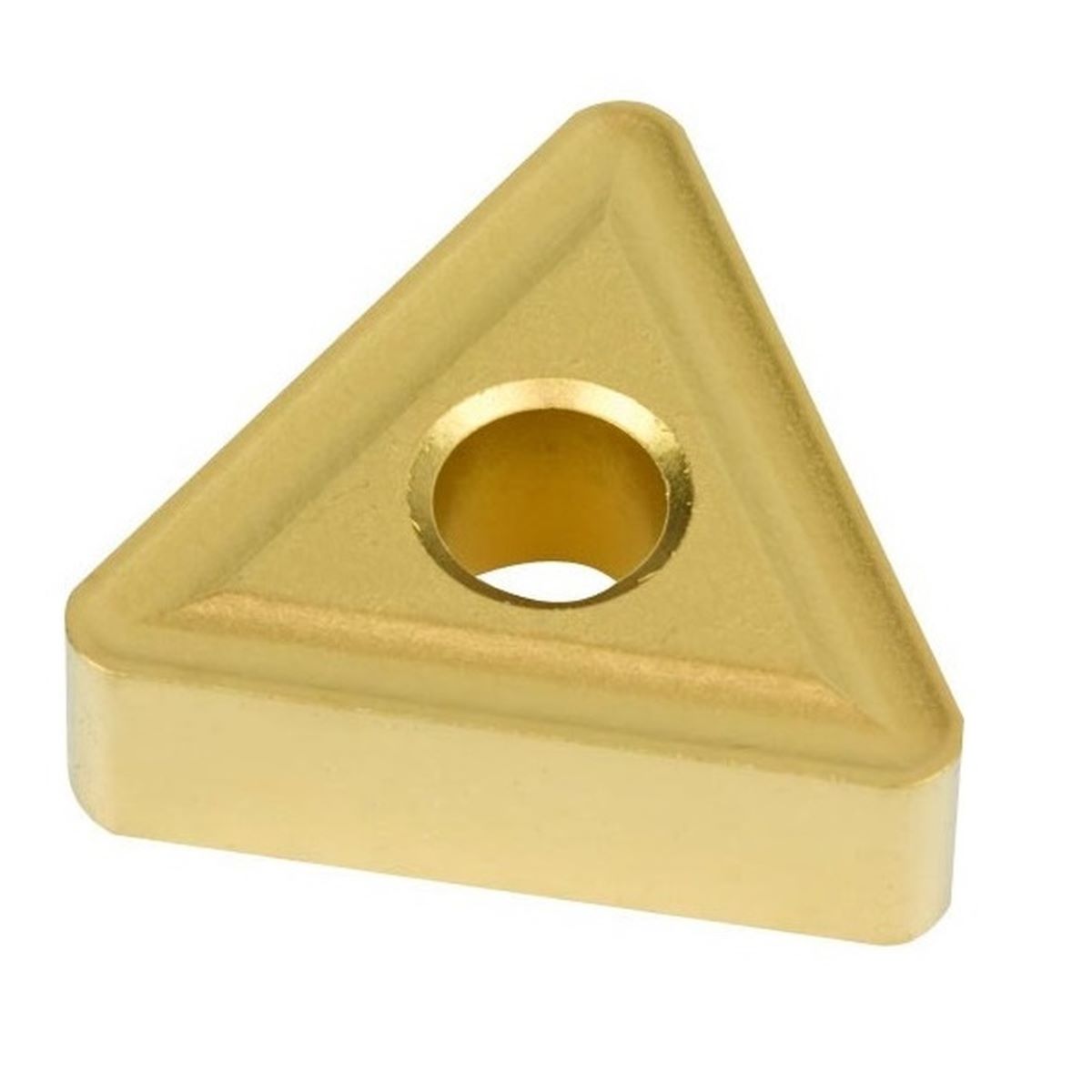

Price is for 10 Pc Box. Picture on display is of a Coated Insert.
C520 (C-2): General purpose grade designed for cast iron and non-ferrous materials.
C550 (C-5): Designed for heavy roughing to semi-finishing of all steels.
CM-14 (C5 Coated): Multi Layer coating TiN/TiC/TiCN/TiN for turning and milling carbon and alloy steels and tool steels. Provides longer tool life than uncoated grades.
Read More
Couldn't load pickup availability
Type:Turning Inserts
Vendor: Carbidenow
- Triangle with chipbreaker
- 0° Relief Angle
- Combo Pin and Clamp Insert
| Insert Type | Dimensions | Uncoated Grade | Coated Grade | ||||||||
| Insert | Corner | Thru | C520 | C550 | Price | CM14 | Price | ||||
| Style | I.C. | Width | Radius | Hole | EDP# | EDP# | 10 Pc Box | EDP# | 10 Pc Box | ||
| TNMG-221 | 1/4 | 1/8 | 1/64 | 0.093 | C40964 | C40968 | $20.99 | C40972 | $27.99 | ||
| TNMG-222 | 1/4 | 1/8 | 1/32 | 0.093 | C40976 | C40980 | $20.99 | C40984 | $27.99 | ||
| TNMG-321 | 3/8 | 1/8 | 1/64 | 0.150 | C40988 | C40992 | $22.99 | C40996 | $29.99 | ||
| TNMG-322 | 3/8 | 1/8 | 1/32 | 0.150 | C41000 | C41004 | $22.99 | C41008 | $29.99 | ||
| TNMG-323 | 3/8 | 1/8 | 3/64 | 0.150 | C41012 | C41016 | $22.99 | C41020 | $29.99 | ||
| TNMG-324 | 3/8 | 1/8 | 1/16 | 0.150 | C41024 | C41028 | $22.99 | C41032 | $29.99 | ||
| TNMG-331 | 3/8 | 3/16 | 1/64 | 0.150 | C41036 | C41040 | $27.99 | C41044 | $36.99 | ||
| TNMG-332 | 3/8 | 3/16 | 1/32 | 0.150 | C41048 | C41052 | $27.99 | C41056 | $36.99 | ||
| TNMG-333 | 3/8 | 3/16 | 3/64 | 0.150 | C41060 | C41064 | $27.99 | C41068 | $36.99 | ||
| TNMG-431 | 1/2 | 3/16 | 1/64 | 0.203 | C41072 | C41076 | $37.99 | C41080 | $48.99 | ||
| TNMG-432 | 1/2 | 3/16 | 1/32 | 0.203 | C41084 | C41088 | $37.99 | C41092 | $48.99 | ||
| TNMG-433 | 1/2 | 3/16 | 3/64 | 0.203 | C41096 | C41100 | $40.99 | C41104 | $51.99 | ||
| TNMG-434 | 1/2 | 3/16 | 1/16 | 0.203 | C41108 | C41112 | $40.99 | C41116 | $51.99 | ||
| TNMG-542 | 5/8 | 1/4 | 1/32 | 0.250 | C41120 | C41124 | $69.99 | C41128 | $82.99 | ||
| TNMG-543 | 5/8 | 1/4 | 3/64 | 0.250 | C41132 | C41136 | $69.99 | C41140 | $82.99 | ||
| TNMG-544 | 5/8 | 1/4 | 1/16 | 0.250 | C41144 | C41148 | $69.99 | C41152 | $82.99 | ||
| TNMG-666 | 3/4 | 3/8 | 3/32 | 0.312 | C41156 | C41160 | $129.99 | C41164 | $146.99 |
