TNMC-NGR (Box of 10)
Regular price
$49.99 USD
Regular price
Sale price
$49.99 USD
Unit price
per
Shipping calculated at checkout.

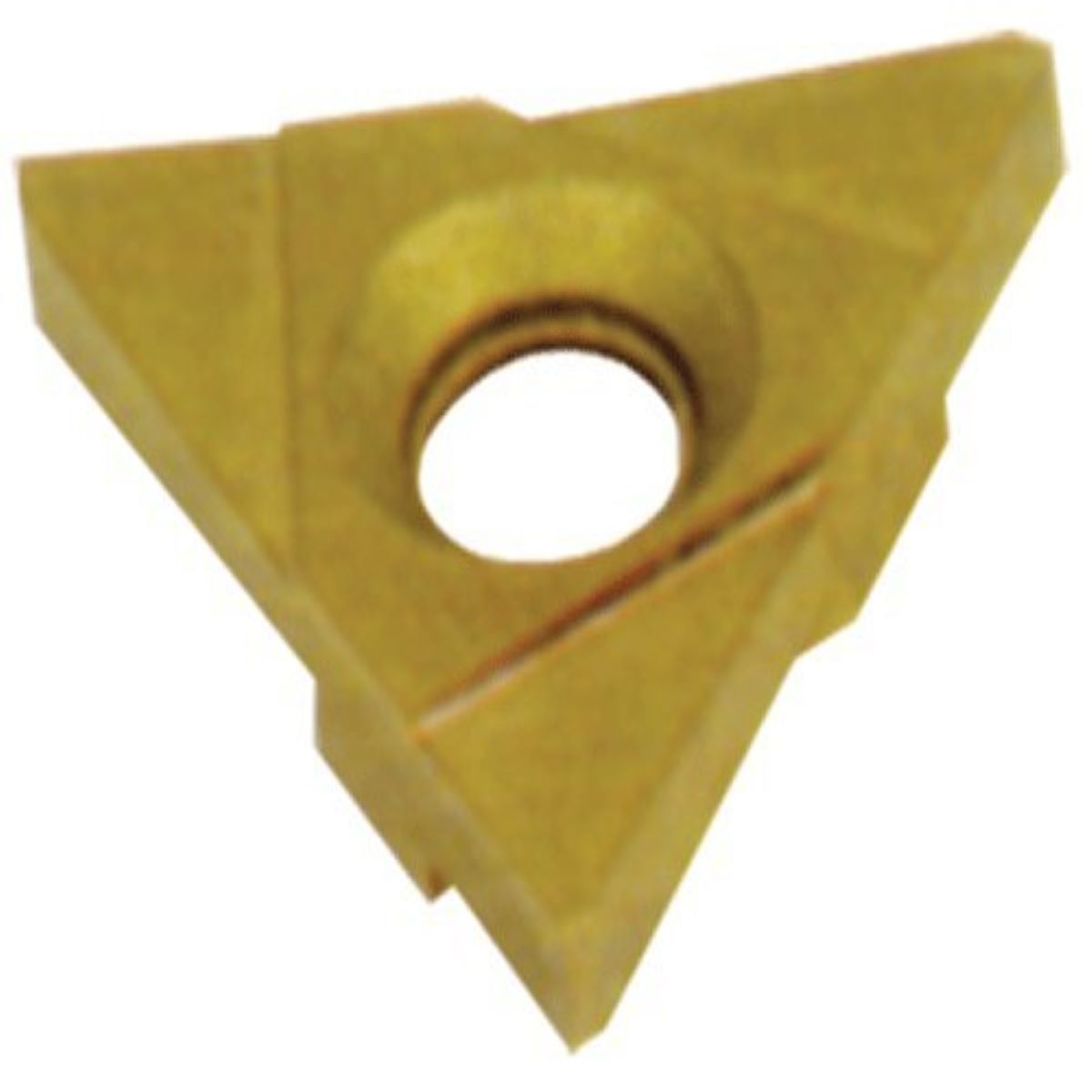

Price is for 10 Pc Box. Picture on display is of a Coated Insert.
C520 (C-2): General purpose grade designed for cast iron and non-ferrous materials.
C550 (C-5): Designed for heavy roughing to semi-finishing of all steels.
CM-14 (C5 Coated): Multi Layer coating TiN/TiC/TiCN/TiN for turning and milling carbon and alloy steels and tool steels. Provides longer tool life than uncoated grades.
Read More
Couldn't load pickup availability
Type:Threading & Grooving Inserts
Vendor: Carbidenow
- Neutral rake insert - Right Hand
- Through hole countersunk on two sides
- On-Edge Carbide Threading and Grooving Inserts
| Insert Type | Dimensions | Uncoated Grade | Coated Grade | ||||||||
| Insert | Groove | Depth | C520 | C550 | Price | CM14 | Price | ||||
| Style | I.C. | Thickness | Width | of Cut | EDP# | EDP# | 10 Pc Box | EDP# | 10 Pc Box | ||
| TNMC-32NGR 031 | 3/8 | 1/8 | 0.031 | 0.075 | C43753 | C43754 | $49.99 | C43757 | $58.99 | ||
| TNMC-32NGR 062 | 3/8 | 1/8 | 0.062 | 0.150 | C43756 | C43760 | $49.99 | C43764 | $58.99 | ||
| TNMC-32NGR 094 | 3/8 | 1/8 | 0.094 | 0.150 | C43768 | C43772 | $49.99 | C43776 | $58.99 | ||
| TNMC-32NGR 125 | 3/8 | 1/8 | 0.125 | 0.150 | C43780 | C43784 | $49.99 | C43788 | $58.99 | ||
| TNMC-43NGR 062 | 1/2 | 3/16 | 0.062 | 0.125 | C43789 | C43790 | $69.99 | C43793 | $80.99 | ||
| TNMC-43NGR 094 | 1/2 | 3/16 | 0.094 | 0.150 | C43794 | C43795 | $69.99 | C43799 | $80.99 | ||
| TNMC-43NGR 125 | 1/2 | 3/16 | 0.125 | 0.210 | C43792 | C43796 | $69.99 | C43800 | $80.99 | ||
| TNMC-43NGR 156 | 1/2 | 3/16 | 0.156 | 0.210 | C43804 | C43808 | $69.99 | C43812 | $80.99 | ||
| TNMC-43NGR 187 | 1/2 | 3/16 | 0.187 | 0.210 | C43816 | C43820 | $69.99 | C43824 | $80.99 | ||
| TNMC-54NGR 125 | 5/8 | 1/4 | 0.125 | 0.270 | ****** | C43825 | $99.99 | C43831 | $115.99 | ||
| TNMC-54NGR 250 | 5/8 | 1/4 | 0.250 | 0.270 | C43826 | C43828 | $99.99 | C43830 | $115.99 |
