TNMA (Box of 10)
Regular price
$39.99 USD
Regular price
Sale price
$39.99 USD
Unit price
per
Shipping calculated at checkout.

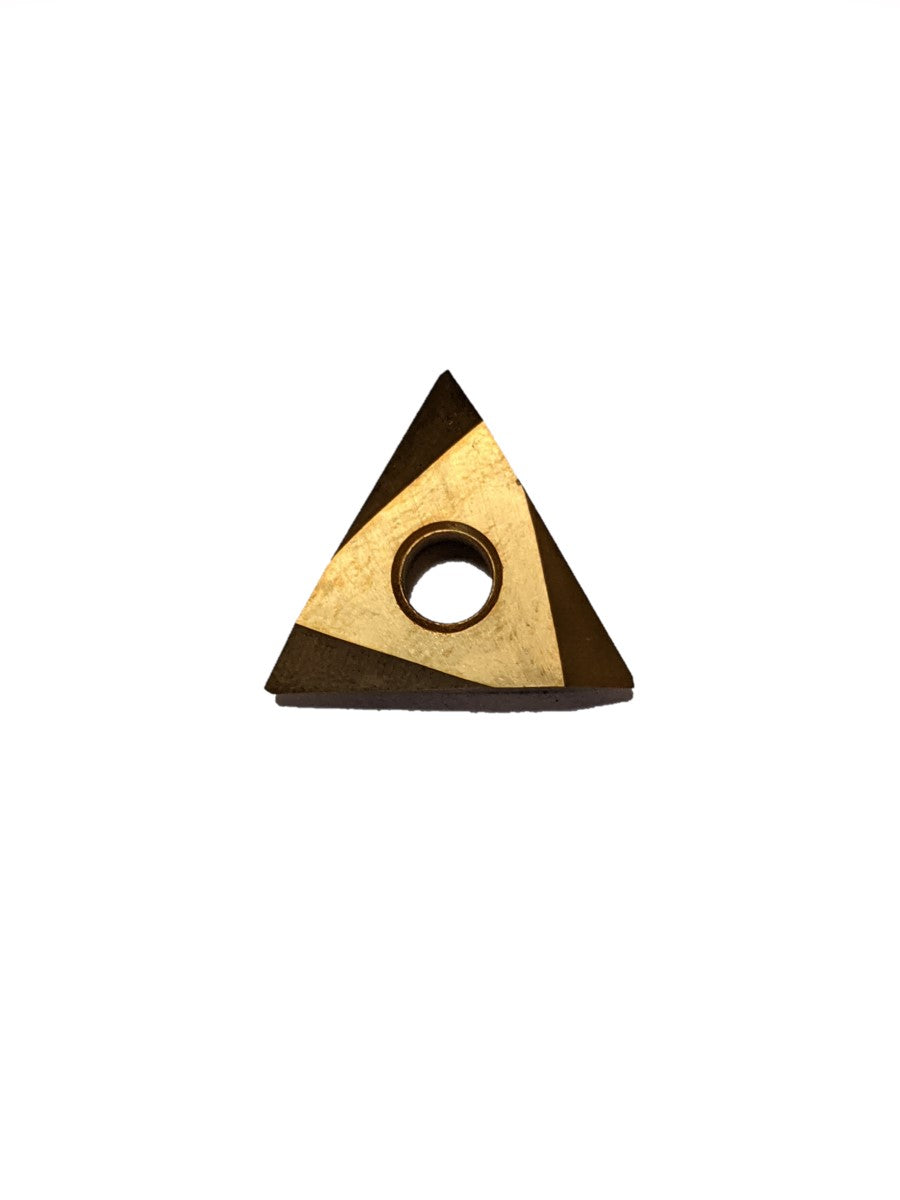

Price is for 10 Pc Box. Picture on display is of a Coated Insert.
C520 (C-2): General purpose grade designed for cast iron and non-ferrous materials.
C550 (C-5): Designed for heavy roughing to semi-finishing of all steels.
CM-14 (C5 Coated): Multi Layer coating TiN/TiC/TiCN/TiN for turning and milling carbon and alloy steels and tool steels. Provides longer tool life than uncoated grades.
Read More
Couldn't load pickup availability
Type:Threading & Grooving Inserts
Vendor: Carbidenow
- On-Edge Carbide Threading and Grooving Inserts
- Neutral Rake Insert with Through Hole
| Insert Type | Dimensions | Uncoated Grade | Coated Grade | ||||||||
| Insert | Threads Per Inch | Threads Per Inch | C520 | C550 | Price | CM14 | Price | ||||
| Style | I.C. | Width | External | Internal | EDP# | EDP# | 10 Pc Box | EDP# | 10 Pc Box | ||
| TNMA-32NV | 3/8 | 1/8 | 8-36 | 8-20 | C43612 | C43616 | $39.99 | C43620 | $49.99 | ||
| TNMA-43NV | 1/2 | 3/16 | 6-20 | 6-12 | C43624 | C43628 | $52.99 | C43632 | $63.99 | ||
| TNMA-54NV | 5/8 | 1/4 | 4-20 | 4-12 | C43636 | C43640 | $89.99 | C43644 | $104.99 | ||
| TNMA-64NV | 3/4 | 1/4 | 4-20 | **** | C43637 | C43638 | $239.99 | C43639 | $298.99 | ||
| TNMA-66NV | 3/4 | 3/8 | 3-12 | **** | C43643 | C43645 | $239.99 | C43647 | $298.99 |
