TCMT (Box of 10)
Regular price
$23.99 USD
Regular price
Sale price
$23.99 USD
Unit price
per
Shipping calculated at checkout.

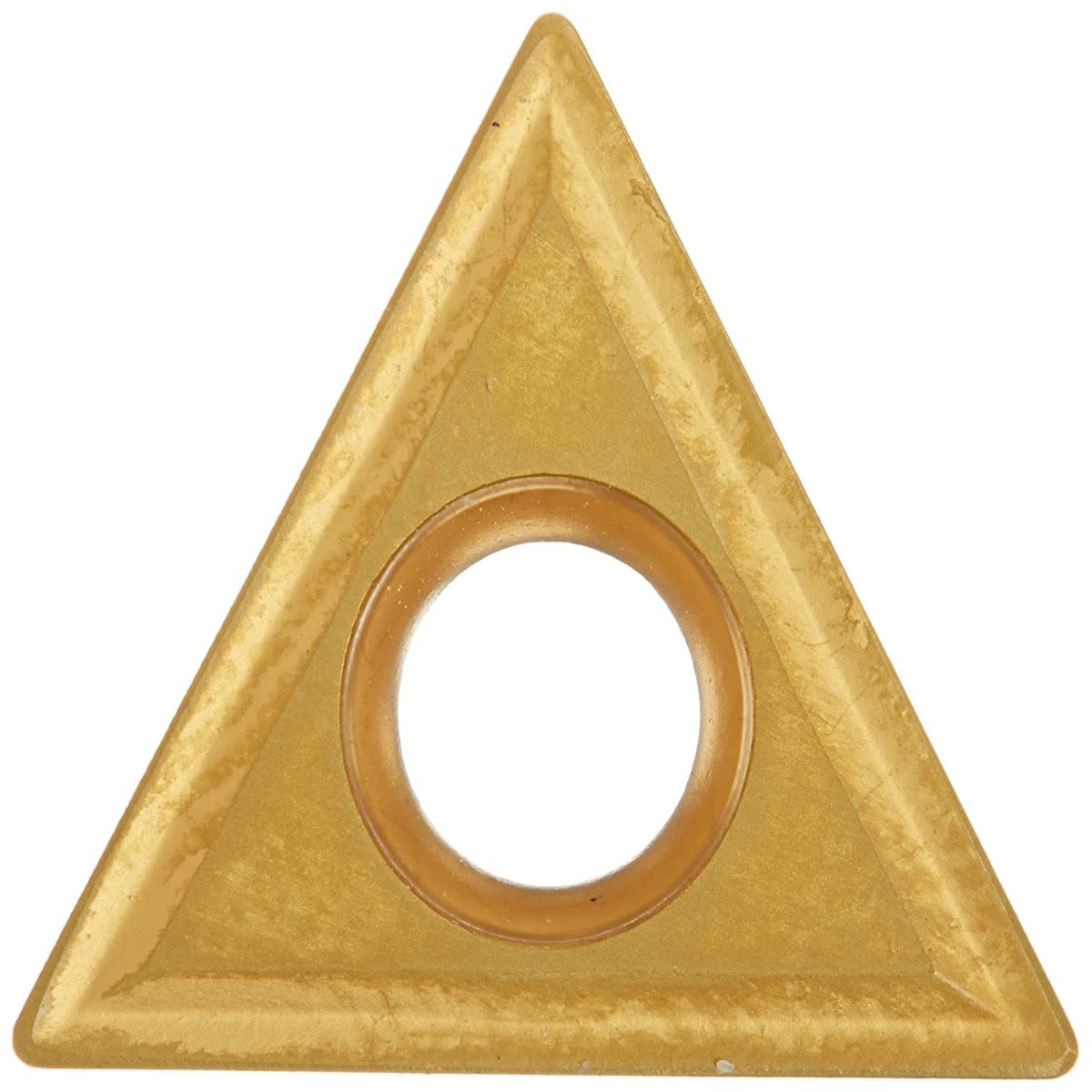

Price is for 10 Pc Box. Picture on display is of a Coated Insert.
C520 (C-2): General purpose grade designed for cast iron and non-ferrous materials.
C550 (C-5): Designed for heavy roughing to semi-finishing of all steels.
CM-14 (C5 Coated): Multi Layer coating TiN/TiC/TiCN/TiN for turning and milling carbon and alloy steels and tool steels. Provides longer tool life than uncoated grades.
Read More
Couldn't load pickup availability
Type:Turning Inserts
Vendor: Carbidenow
- Screw-On style Insert - 7° Relief Angle
- Single sided for semi-finishing and finishing
- Triangle with chipbreaker - Used for turning
| Insert Type | Dimensions | Uncoated Grade | Coated Grade | ||||||||
| Insert | Corner | Thru | C520 | C550 | Price | CM14 | Price | ||||
| Style | I.C. | Width | Radius | Hole | EDP# | EDP# | 10 Pc Box | EDP# | 10 Pc Box | ||
| TCMT-21.505 | 1/4 | 3/32 | 0.008 | 0.110 | C40905 | C40906 | $23.99 | C40924 | $30.99 | ||
| TCMT-21.51 | 1/4 | 3/32 | 1/64 | 0.110 | C40927 | C40931 | $23.99 | C40935 | $30.99 | ||
| TCMT-21.52 | 1/4 | 3/32 | 1/32 | 0.110 | C40928 | C40932 | $23.99 | C40936 | $30.99 | ||
| TCMT-32.505 | 3/8 | 5/32 | 0.008 | 0.173 | C40940 | C40944 | $25.99 | C40948 | $34.99 | ||
| TCMT-32.51 | 3/8 | 5/32 | 1/64 | 0.173 | C40952 | C40956 | $25.99 | C40960 | $34.99 | ||
| TCMT-32.52 | 3/8 | 5/32 | 1/32 | 0.173 | C40953 | C40957 | $25.99 | C40961 | $34.99 | ||
| TCMT-431 | 1/2 | 3/16 | 1/64 | 0.216 | C40965 | C40966 | $32.99 | C40969 | $44.99 | ||
| TCMT-432 | 1/2 | 3/16 | 1/32 | 0.216 | C40970 | C40971 | $32.99 | C40974 | $44.99 |
