SPG (Box of 10)
Regular price
$20.99 USD
Regular price
Sale price
$20.99 USD
Unit price
per
Shipping calculated at checkout.

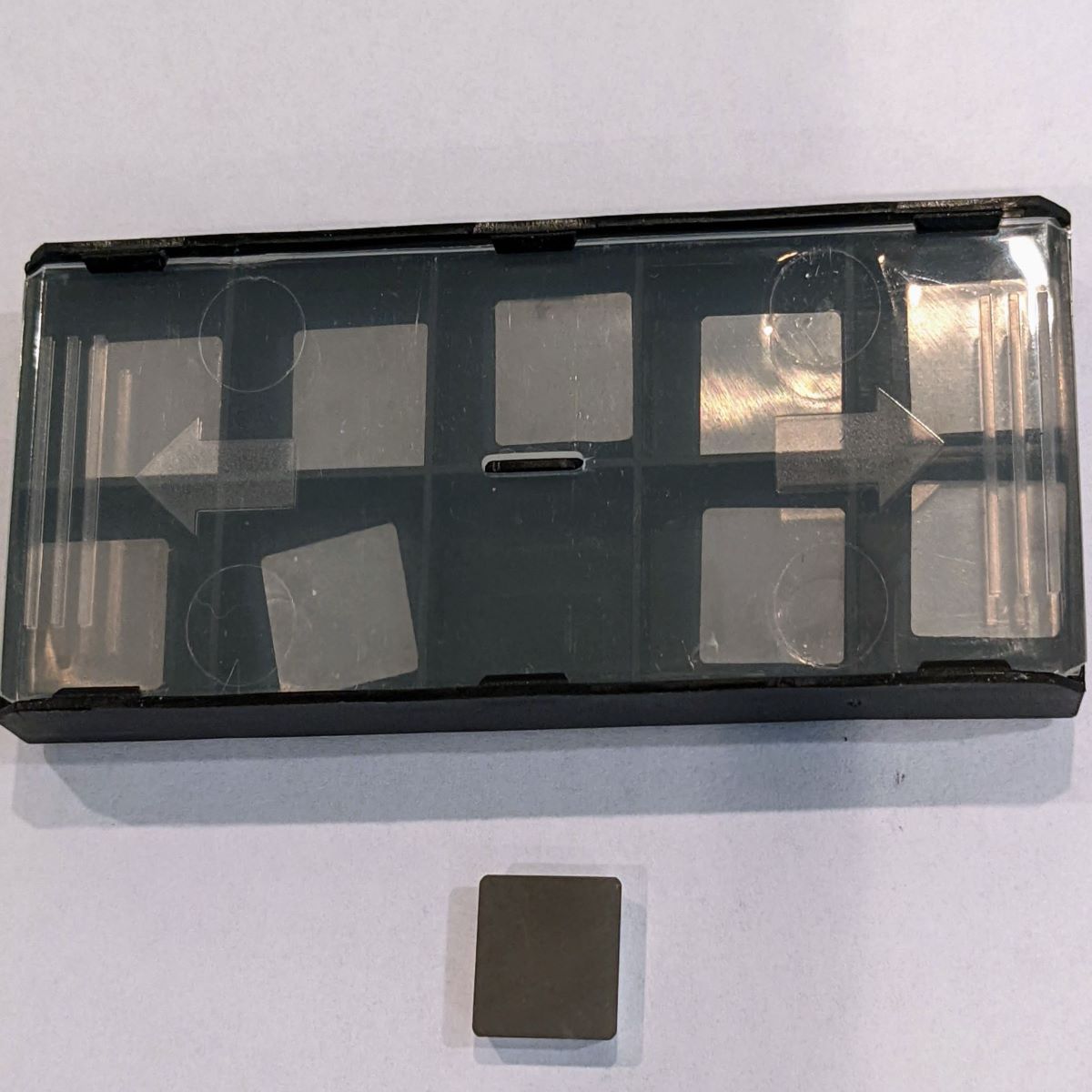

Price is for 10 Pc Box. Picture on display is of a Coated Insert.
C520 (C-2): General purpose grade designed for cast iron and non-ferrous materials.
C550 (C-5): Designed for heavy roughing to semi-finishing of all steels.
CM-14 (C5 Coated): Multi Layer coating TiN/TiC/TiCN/TiN for turning and milling carbon and alloy steels and tool steels. Provides longer tool life than uncoated grades.
Read More
Couldn't load pickup availability
Type:Turning Inserts
Vendor: Carbidenow
- Clamp Style Insert - 11° Relief Angle
- 90° Square Single sided Fully Ground
- Suited for problem free chip forming materials
- Feed Range .003 to .030 IPR
| Insert Type | Dimensions | Uncoated Grade | Coated Grade | ||||||||
| Insert | Corner | C520 | C550 | Price | CM14 | Price | |||||
| Style | I.C. | Width | Radius | EDP# | EDP# | 10 Pc Box | EDP# | 10 Pc Box | |||
| SPG-321 | 3/8 | 1/8 | 1/64 | C40700 | C40704 | $20.99 | C40708 | $28.99 | |||
| SPG-322 | 3/8 | 1/8 | 1/32 | C40712 | C40716 | $20.99 | C40720 | $28.99 | |||
| SPG-421 | 1/2 | 1/8 | 1/64 | C40724 | C40728 | $21.99 | C40732 | $35.99 | |||
| SPG-422 | 1/2 | 1/8 | 1/32 | C40736 | C40740 | $20.99 | C40744 | $32.99 | |||
| SPG-423 | 1/2 | 1/8 | 3/64 | C40748 | C40752 | $21.99 | C40756 | $35.99 | |||
| SPG-424 | 1/2 | 1/8 | 1/16 | C40760 | C40764 | $21.99 | C40768 | $35.99 | |||
| SPG-432 | 1/2 | 3/16 | 1/32 | C40772 | C40776 | $21.99 | C40780 | $35.99 | |||
| SPG-433 | 1/2 | 3/16 | 3/64 | C40784 | C40788 | $21.99 | C40792 | $35.99 | |||
| SPG-434 | 1/2 | 3/16 | 1/16 | C40796 | C40800 | $21.99 | C40804 | $35.99 | |||
| SPG-533 | 5/8 | 3/16 | 3/64 | C40808 | C40812 | $39.99 | C40816 | $55.99 | |||
| SPG-631 | 3/4 | 3/16 | 1/64 | ****** | C40819 | $75.99 | C40818 | $99.99 | |||
| SPG-632 | 3/4 | 3/16 | 1/32 | C40820 | C40824 | $75.99 | C40828 | $99.99 | |||
| SPG-633 | 3/4 | 3/16 | 3/64 | C40832 | C40836 | $75.99 | C40840 | $99.99 | |||
| SPG-634 | 3/4 | 3/16 | 1/16 | C40844 | C40848 | $75.99 | C40852 | $99.99 | |||
| SPG-638 | 3/4 | 3/16 | 1/8 | ****** | ****** | ***** | C40842 | $99.99 |
