SNU (Box of 10)
Regular price
$20.99 USD
Regular price
Sale price
$20.99 USD
Unit price
per

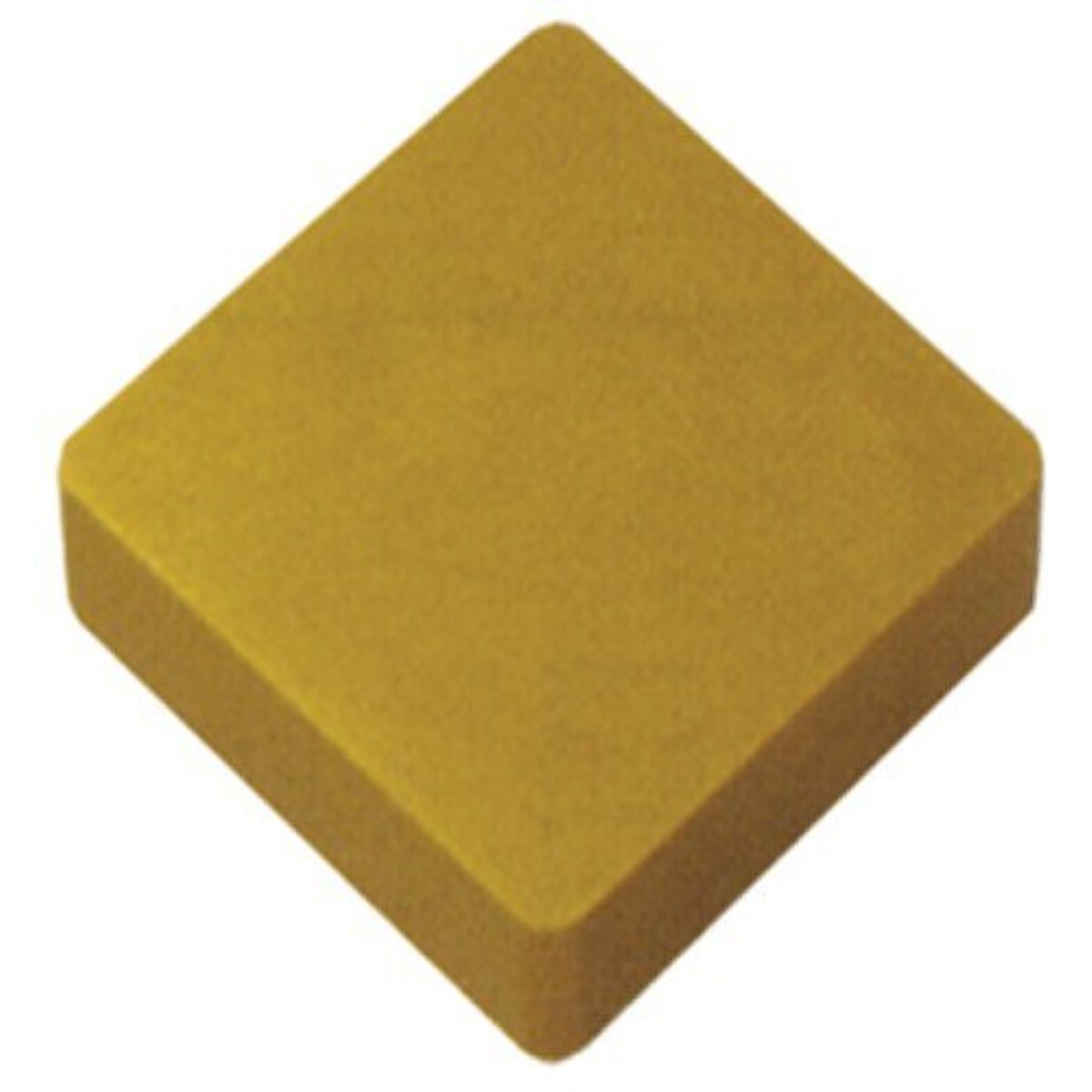

Price is for 10 Pc Box. Picture on display is of a Coated Insert.
C520 (C-2): General purpose grade designed for cast iron and non-ferrous materials.
C550 (C-5): Designed for heavy roughing to semi-finishing of all steels.
CM-14 (C5 Coated): Multi Layer coating TiN/TiC/TiCN/TiN for turning and milling carbon and alloy steels and tool steels. Provides longer tool life than uncoated grades.
Read More
Type:Turning Inserts
Vendor:
- Clamp Style Insert - Square Ground Top and Bottom
- 0° Relief Angle - Double sided without chipbreaker
- Suited for problem free chip forming materials
- Feed Range .003 to .030 IPR
Insert Type | Dimensions | Uncoated Grade | Coated Grade | ||||||||
Insert | Corner | C520 | C550 | Price | CM14 | Price | |||||
Style | I.C. | Width | Radius | EDP# | EDP# | 10 Pc Box | EDP# | 10 Pc Box | |||
SNU-422 | 1/2 | 1/8 | 1/32 | C40677 | C40678 | $20.99 | C40679 | $31.99 | |||
SNU-432 | 1/2 | 3/16 | 1/32 | C40681 | C40682 | $21.99 | C40683 | $36.99 | |||
SNU-433 | 1/2 | 3/16 | 3/64 | C40676 | C40680 | $21.99 | C40684 | $36.99 | |||
SNU-632 | 3/4 | 3/16 | 1/32 | C40685 | C40686 | $61.99 | C40687 | $90.99 | |||
SNU-633 | 3/4 | 3/16 | 3/64 | C40688 | C40692 | $61.99 | C40696 | $90.99 | |||
SNU-634 | 3/4 | 3/16 | 1/16 | C40697 | C40698 | $61.99 | C40699 | $90.99 | |||
SNU-644 | 3/4 | 1/4 | 1/16 | C40700 | C40701 | $91.99 | C40702 | $115.99 |
