SNMG (Box of 10)
Regular price
$19.60 USD
Regular price
Sale price
$19.60 USD
Unit price
per
Shipping calculated at checkout.

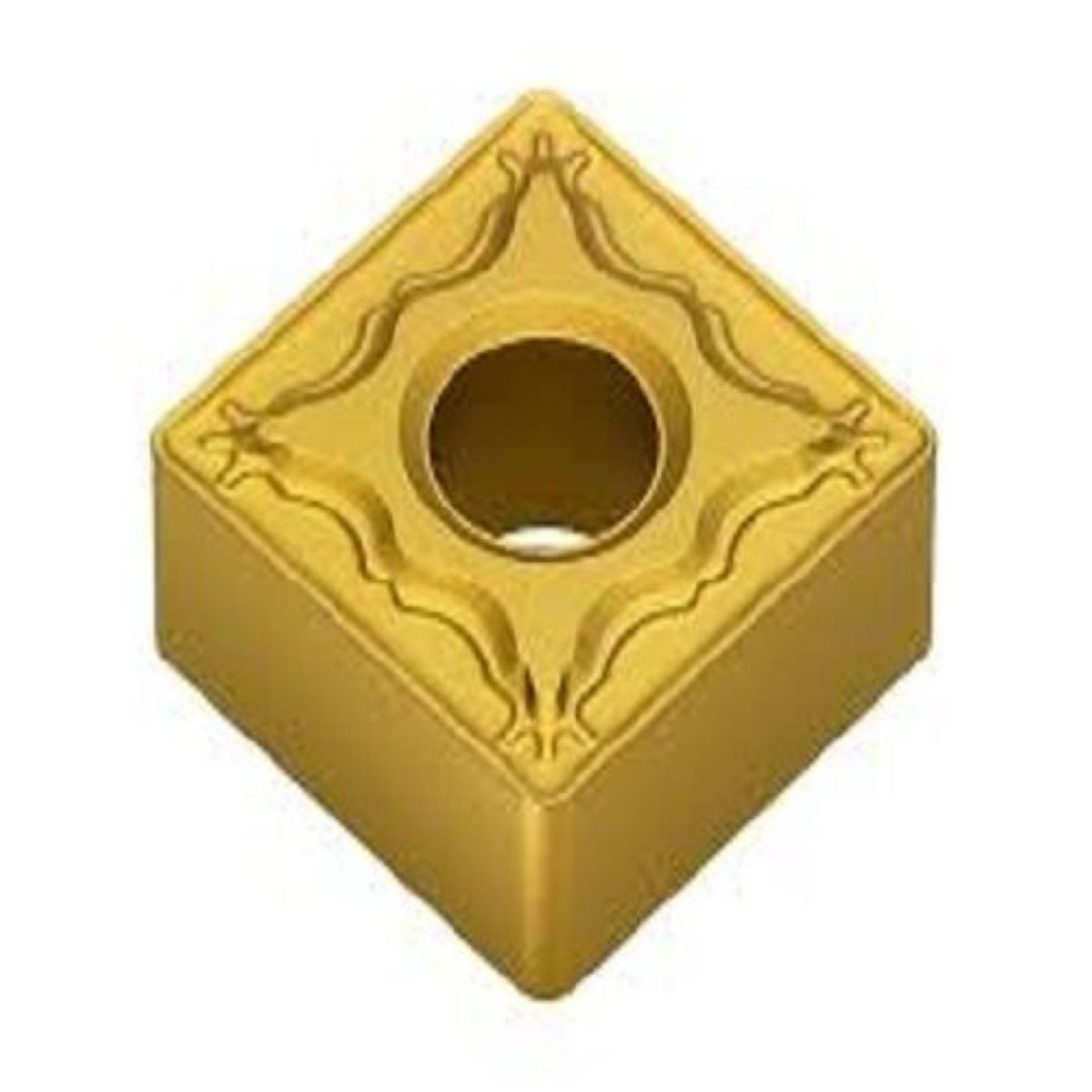

Price is for 10 Pc Box. Picture on display is of a Coated Insert.
C520 (C-2): General purpose grade designed for cast iron and non-ferrous materials.
C550 (C-5): Designed for heavy roughing to semi-finishing of all steels.
CM-14 (C5 Coated): Multi Layer coating TiN/TiC/TiCN/TiN for turning and milling carbon and alloy steels and tool steels. Provides longer tool life than uncoated grades.
Read More
Couldn't load pickup availability
Type:Turning Inserts
Vendor: Carbidenow
- Combo Pin and Clamp Insert - Square with chipbreaker
- 0° Relief Angle - Double sided for medium to heavy cuts
- Used for a wide range of materials and applications
- Feed Range .007 to .028 IPR
| Insert Type | Dimensions | Uncoated Grade | Coated Grade | ||||||||
| Insert | Corner | Thru | C520 | C550 | Price | CM14 | Price | ||||
| Style | I.C. | Width | Radius | Hole | EDP# | EDP# | 10 Pc Box | EDP# | 10 Pc Box | ||
| SNMG-321 | 3/8 | 1/8 | 1/64 | 0.150 | C40589 | C40590 | $19.60 | C40591 | $26.99 | ||
| SNMG-322 | 3/8 | 1/8 | 1/32 | 0.150 | C40592 | C40596 | $19.60 | C40600 | $26.99 | ||
| SNMG-323 | 3/8 | 1/8 | 3/64 | 0.150 | C40601 | C40602 | $19.60 | C40603 | $27.99 | ||
| SNMG-333 | 3/8 | 3/16 | 3/64 | 0.150 | C40605 | C40606 | $19.99 | C40607 | $27.99 | ||
| SNMG-431 | 1/2 | 3/16 | 1/64 | 0.203 | C40604 | C40608 | $34.99 | C40612 | $45.99 | ||
| SNMG-432 | 1/2 | 3/16 | 1/32 | 0.203 | C40616 | C40620 | $34.99 | C40624 | $45.99 | ||
| SNMG-433 | 1/2 | 3/16 | 3/64 | 0.203 | C40628 | C40632 | $34.99 | C40636 | $45.99 | ||
| SNMG-434 | 1/2 | 3/16 | 3/64 | 0.203 | C40640 | C40644 | $34.99 | C40648 | $45.99 | ||
| SNMG-542 | 5/8 | 1/4 | 1/32 | 0.250 | C40652 | C40656 | $40.99 | C40660 | $58.99 | ||
| SNMG-543 | 5/8 | 1/4 | 3/64 | 0.250 | C40664 | C40668 | $40.99 | C40672 | $58.99 | ||
| SNMG-544 | 5/8 | 1/4 | 1/16 | 0.250 | C40641 | C40642 | $40.99 | C40643 | $58.99 | ||
| SNMG-642 | 3/4 | 1/4 | 1/32 | 0.312 | C40653 | C40654 | $90.99 | C40655 | $110.99 | ||
| SNMG-643 | 3/4 | 1/4 | 3/64 | 0.312 | C40657 | C40658 | $90.99 | C40659 | $110.99 | ||
| SNMG-644 | 3/4 | 1/4 | 1/16 | 0.312 | C40673 | C40674 | $90.99 | C40675 | $110.99 |
