SEAN (Box of 10)
Regular price
$31.95 USD
Regular price
Sale price
$31.95 USD
Unit price
per
Shipping calculated at checkout.

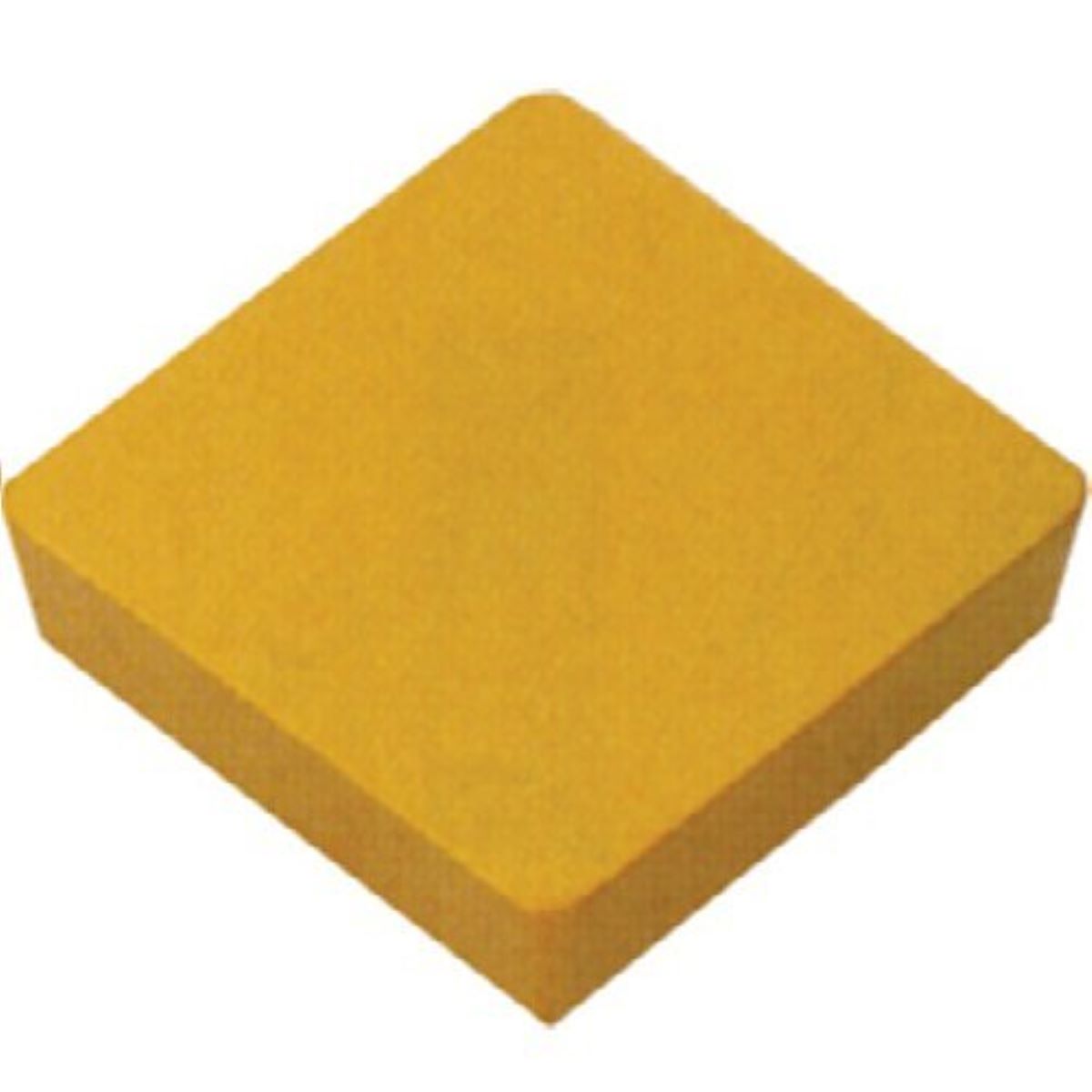

Price is for 10 Pc Box. Picture on display is of a Coated Insert.
C520 (C-2): General purpose grade designed for cast iron and non-ferrous materials.
C550 (C-5): Designed for heavy roughing to semi-finishing of all steels.
CM-14 (C5 Coated): Multi Layer coating TiN/TiC/TiCN/TiN for turning and milling carbon and alloy steels and tool steels. Provides longer tool life than uncoated grades.
Read More
Couldn't load pickup availability
Type:Milling Inserts
Vendor: Carbidenow
- Square 20° Positive Milling Insert
- Use for end milling and face milling
| Insert Type | Dimensions | Uncoated Grade | Coated Grade | ||||||||
| Insert | Corner | C520 | C550 | Price | CM14 | Price | |||||
| Style | I.C. | Width | Flat | EDP# | EDP# | 10 Pc Box | EDP# | 10 Pc Box | |||
| SEAN-42 AFTN | 1/2 | 1/8 | 0.097 x 45° | C42446 | C42448 | $31.95 | C42450 | $42.95 | |||
| SEAN-43 AFTN | 1/2 | 3/16 | 0.097 x 45° | C42451 | C42453 | $32.95 | C42455 | $43.95 | |||
| SEAN-53 AFTN | 5/8 | 3/16 | 0.097 x 45° | C42452 | C42454 | $44.95 | C42456 | $60.95 | |||
| SEAN-42 AFN | 1/2 | 1/8 | 0.097 x 45° | C42457 | C42757 | $31.95 | C42459 | $42.95 | |||
| SEAN-43 AFN | 1/2 | 3/16 | 0.097 x 45° | C42756 | C42758 | $32.95 | C42762 | $43.95 | |||
| SEAN-53 AFN | 5/8 | 3/16 | 0.097 x 45° | C42764 | C42766 | $44.95 | C42770 | $60.95 |
