NG - Right Hand (Box of 10)

$58.95 USD
$58.95 USD
Sale Sold out
Shipping calculated at checkout.

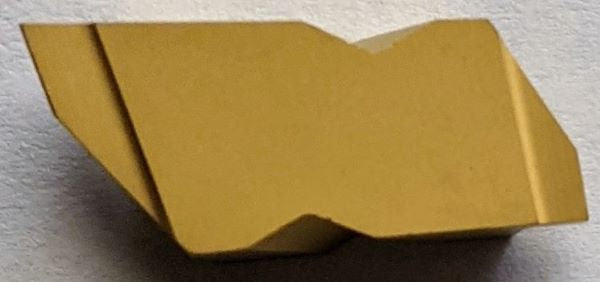

Price is for 10 Pc Box. Picture on display is of a Coated Insert. C520 (C-2): General purpose grade designed for cast iron and non-ferrous materials. C550 (C-5): Designed for heavy roughing to semi-finishing of all steels. CM-14 (C5 Coated): Multi Layer coating TiN/TiC/TiCN/TiN for turning and milling carbon and alloy steels and tool steels. Provides longer tool life than uncoated grades. Read More

Type:Grooving Inserts

Vendor: Carbidenow

- Grooving and Profiling

- Right Hand

Insert Type Dimensions Uncoated Grade Coated Grade
Insert Insert Groove Depth Insert C520 C550 Price CM14 Price
Style Size Width of Cut Radius EDP# EDP# 10 Pc Box EDP# 10 Pc Box
NG-2031R 2RH 0.031 0.050 0.005/0.010 C46700 C46702 $58.95 C46706 $68.95
NG-2041R 2RH 0.041 0.050 0.005/0.010 C46708 C46710 $58.95 C46714 $68.95
NG-2047R 2RH 0.047 0.050 0.005/0.010 C46716 C46718 $58.95 C46722 $68.95
NG-2056R 2RH 0.056 0.050 0.005/0.010 C46724 C46726 $58.95 C46730 $68.95
NG-2062R 2RH 0.062 0.050 0.005/0.010 C46732 C46734 $58.95 C46738 $68.95
NG-2094R 2RH 0.094 0.110 0.005/0.010 C46740 C46742 $58.95 C46746 $68.95
NG-2125R 2RH 0.125 0.110 0.005/0.010 C46748 C46750 $58.95 C46754 $68.95
NG-3031R 3RH 0.031 0.075 0.005/0.010 C46756 C46758 $62.95 C46762 $73.95
NG-3047R 3RH 0.047 0.075 0.005/0.010 C46764 C46766 $62.95 C46770 $73.95
NG-3062R 3RH 0.062 0.094 0.005/0.010 C46772 C46774 $59.95 C46778 $69.95
NG-3072R 3RH 0.072 0.094 0.005/0.010 C46780 C46782 $62.95 C46786 $73.95
NG-3088R 3RH 0.088 0.094 0.005/0.010 C46788 C46790 $62.95 C46794 $73.95
NG-3094R 3RH 0.094 0.150 0.005/0.010 C46796 C46798 $62.95 C46802 $73.95
NG-3097R 3RH 0.097 0.150 0.005/0.010 C46804 C46806 $62.95 C46810 $73.95
NG-3105R 3RH 0.105 0.150 0.005/0.010 C46812 C46814 $62.95 C46818 $73.95
NG-3125R 3RH 0.125 .0150 0.005/0.010 C46820 C46822 $62.95 C46826 $73.95
NG-3142R 3RH 0.142 0.150 0.005/0.010 C46828 C46830 $62.95 C46834 $73.95
NG-3156R 3RH 0.156 0.150 0.005/0.010 C46836 C46838 $62.95 C46842 $73.95
NG-3178R 3RH 0.178 0.150 0.005/0.010 C46844 C46846 $62.95 C46850 $73.95
NG-3189R 3RH 0.189 0.150 0.020/0.025 C46852 C46854 $62.95 C46858 $73.95
NG-4125R 4RH 0.125 0.250 0.020/0.025 C46860 C46862 $122.95 C46866 $139.95
NG-4189R 4RH 0.189 0.250 0.020/0.025 C46868 C46870 $122.95 C46874 $139.95
NG-4250R 4RH 0.250 0.250 0.020/0.025 C46876 C46878 $122.95 C46882 $139.95
