GTR (Box of 10)
Regular price
$48.99 USD
Regular price
Sale price
$48.99 USD
Unit price
per

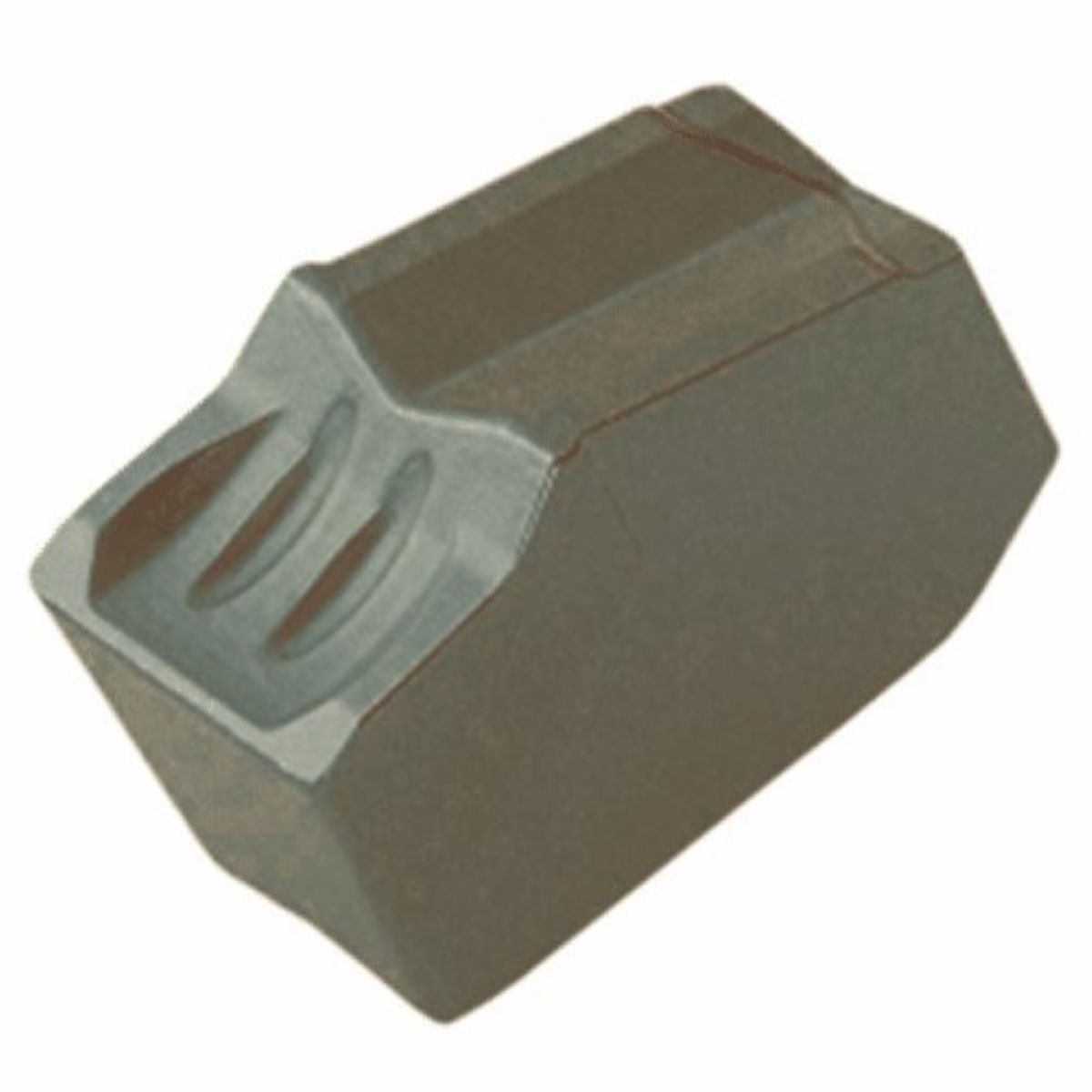

Price is for 10 Pc Box. Picture on display is of an Uncoated Insert.
C520 (C-2): General purpose grade designed for cast iron and non-ferrous materials.
C550 (C-5): Designed for heavy roughing to semi-finishing of all steels.
CM-14 (C5 Coated): Multi Layer coating TiN/TiC/TiCN/TiN for turning and milling carbon and alloy steels and tool steels. Provides longer tool life than uncoated grades.
Read More
Type:Cut-Off Inserts
Vendor:
- Cut-Off Style Carbide Inserts
Insert Type | Dimensions | Uncoated Grade | Coated Grade | ||||||||
Insert | Lead | "w" | C520 | C550 | Price | CM14 | Price | ||||
Style | Angle | Width | EDP# | EDP# | 10 Pc Box | EDP# | 10 Pc Box | ||||
GTR-2 | 8° | 0.087 | C43096 | C43100 | $48.99 | C43104 | $57.99 | ||||
GTR-2.4 | 8° | 0.094 | C43108 | C43112 | $48.99 | C43116 | $57.99 | ||||
GTR-3 | 8° | 0.120 | C43120 | C43124 | $57.99 | C43128 | $66.99 | ||||
GTR-4 | 8° | 0.160 | C43132 | C43136 | $65.99 | C43140 | $75.99 | ||||
GTR-4.8 | 8° | 0.187 | C43144 | C43148 | $65.99 | C43152 | $75.99 | ||||
GTR-5 | 8° | 0.200 | C43160 | C43162 | $70.99 | C43164 | $81.99 | ||||
GTR-6 | 8° | 0.250 | C43170 | C43172 | $79.99 | C43174 | $91.99 |
