DNMP (Box of 10)
Regular price
$48.40 USD
Regular price
Sale price
$48.40 USD
Unit price
per
Shipping calculated at checkout.

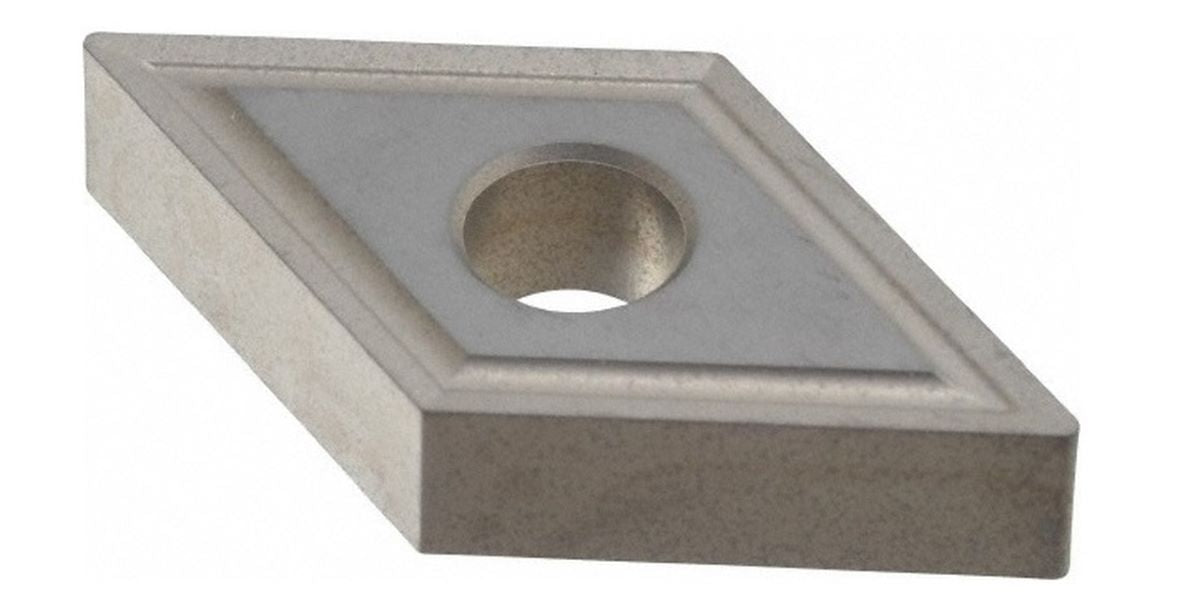

Price is for 10 Pc Box. Picture on display is of an Uncoated Insert.
C520 (C-2): General purpose grade designed for cast iron and non-ferrous materials.
C550 (C-5): Designed for heavy roughing to semi-finishing of all steels.
CM-14 (C5 Coated): Multi Layer coating TiN/TiC/TiCN/TiN for turning and milling carbon and alloy steels and tool steels. Provides longer tool life than uncoated grades.
Read More
Couldn't load pickup availability
Type:Turning Inserts
Vendor: Carbidenow
- Screw-On Style insert - 55° Relief Angle
- Diamond with chipbreaker
- 5° Positive cutting action double sided for semi-finishing and finishing
| Insert Type | Dimensions | Uncoated Grade | Coated Grade | ||||||||
| Insert | Corner | Thru | C520 | C550 | Price | CM14 | Price | ||||
| Style | I.C. | Width | Radius | Hole | EDP# | EDP# | 10 Pc Box | EDP# | 10 Pc Box | ||
| DNMP-431 | 1/2 | 3/16 | 1/64 | 0.203 | C44690 | C44692 | $48.40 | C44696 | $60.95 | ||
| DNMP-432 | 1/2 | 3/16 | 1/32 | 0.203 | C44698 | C44700 | $48.40 | C44704 | $60.95 |
