DCMT (Box of 10)
Regular price
$26.95 USD
Regular price
Sale price
$26.95 USD
Unit price
per
Shipping calculated at checkout.

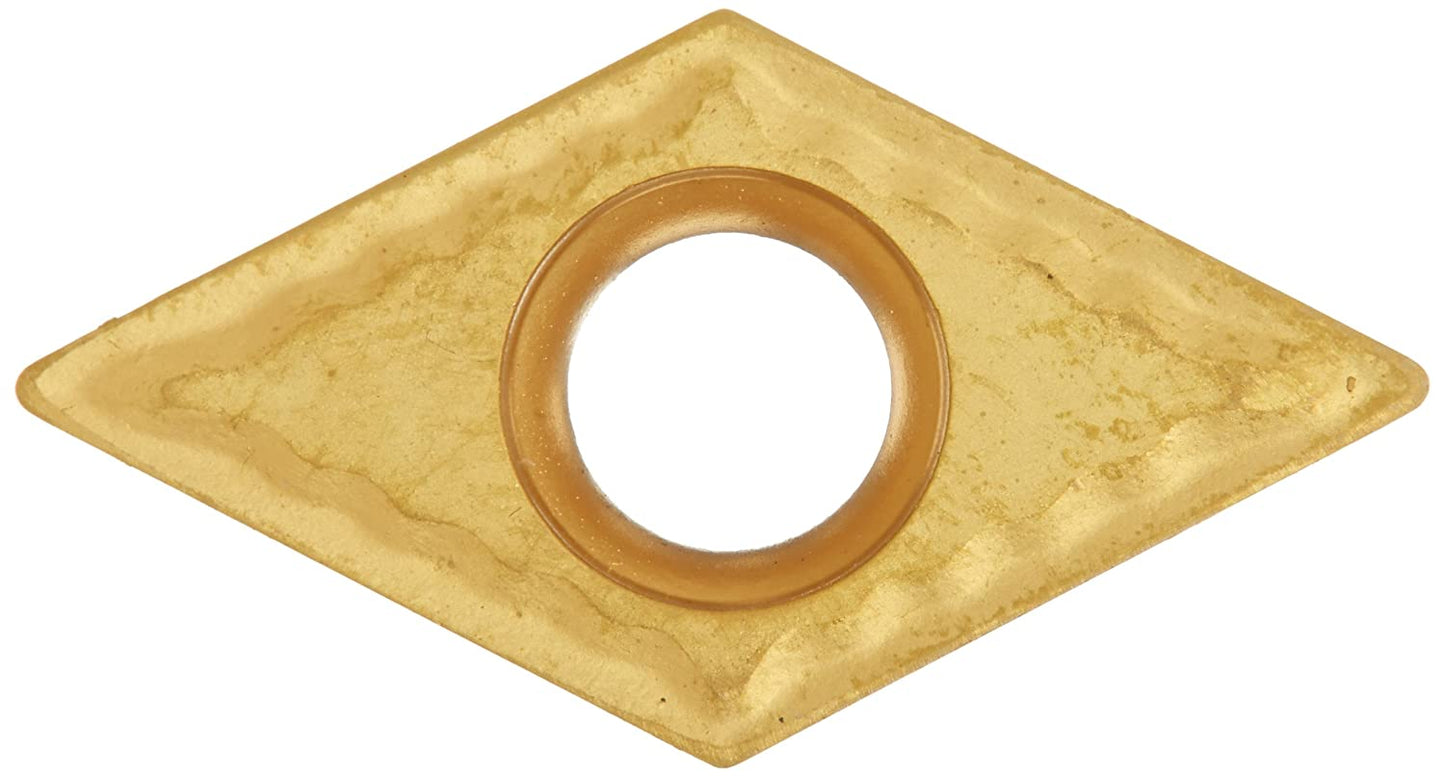

Price is for 10 Pc Box. Picture on display is of a Coated Insert.
C520 (C-2): General purpose grade designed for cast iron and non-ferrous materials.
C550 (C-5): Designed for heavy roughing to semi-finishing of all steels.
CM-14 (C5 Coated): Multi Layer coating TiN/TiC/TiCN/TiN for turning and milling carbon and alloy steels and tool steels. Provides longer tool life than uncoated grades.
Read More
Couldn't load pickup availability
Type:Turning Inserts
Vendor: Carbidenow
-Chipbreaker Type CM-Medium - Screw-On Style Insert
- 7° Relief Angle - 55° Diamond
- Single Sided insert with molded chipbreaker
- For semi-finishing and finishing cuts
- Feed range .003 to .012 IPR
| Insert Type | Dimensions | Uncoated Grade | Coated Grade | ||||||||
| Insert | Corner | Thru | C520 | C550 | Price | CM14 | Price | ||||
| Style | I.C. | Width | Radius | Hole | EDP# | EDP# | 10 Pc Box | EDP# | 10 PC Box | ||
| DCMT-21.51 | 1/4 | 3/32 | 1/64 | 0.110 | C40436 | C40440 | $26.95 | C40444 | $34.95 | ||
| DCMT-21.52 | 1/4 | 3/32 | 1/32 | 0.110 | C40448 | C40452 | $26.95 | C40456 | $34.95 | ||
| DCMT-32.51 | 3/8 | 5/32 | 1/64 | 0.173 | C40460 | C40464 | $30.60 | C40468 | $39.95 | ||
| DCMT-32.52 | 3/8 | 5/32 | 1/32 | 0.173 | C40472 | C40476 | $30.60 | C40480 | $39.95 | ||
| DCMT-431 | 1/2 | 3/16 | 1/64 | 0.203 | C40467 | C40469 | $38.95 | C40471 | $50.95 | ||
| DCMT-432 | 1/2 | 3/16 | 1/32 | 0.203 | C40479 | C40481 | $38.95 | C40483 | $50.95 |
