CTA (Box of 10)
Regular price
$27.10 USD
Regular price
Sale price
$27.10 USD
Unit price
per
Shipping calculated at checkout.

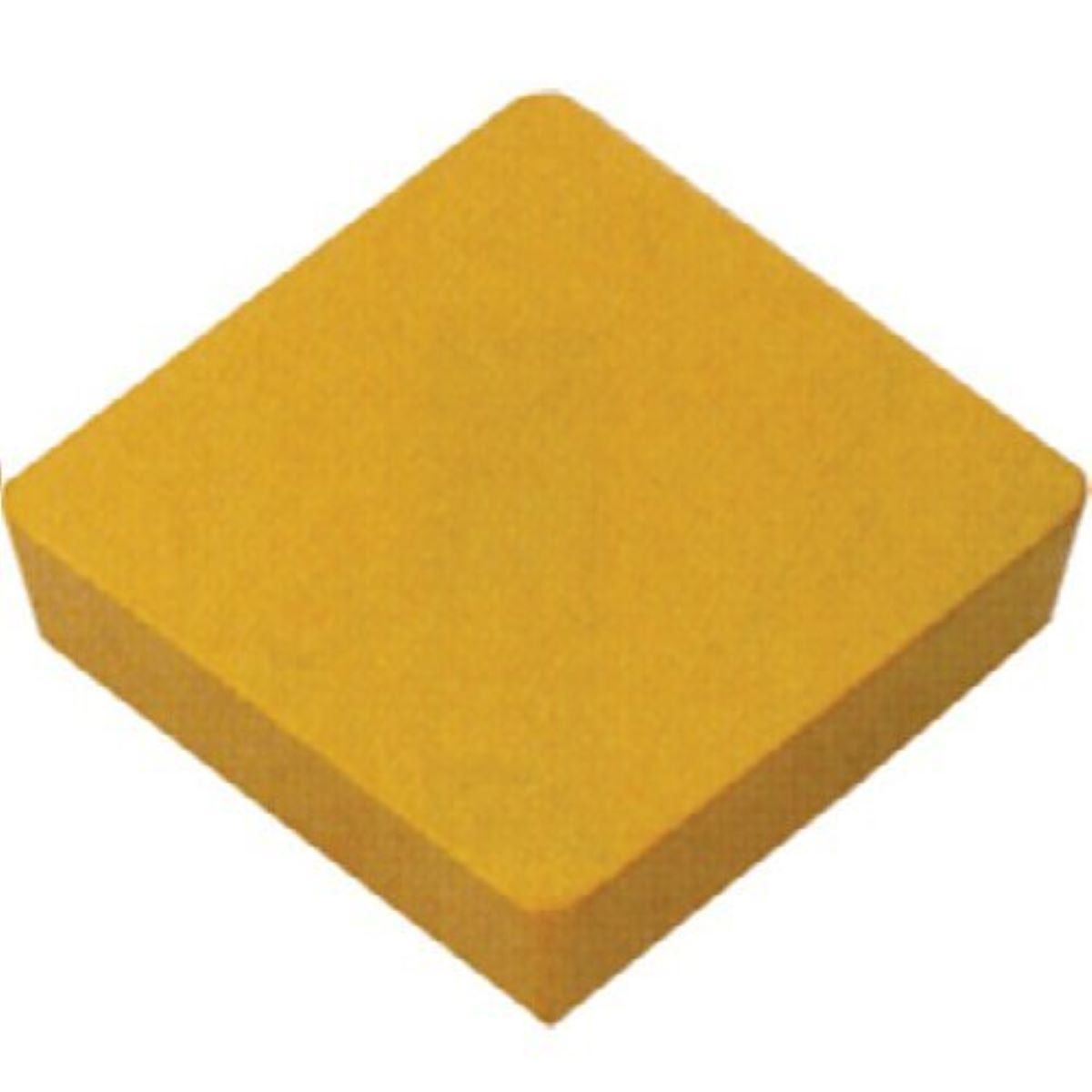

Price is for 10 Pc Box. Picture on display is of a Coated Insert.
C520 (C-2): General purpose grade designed for cast iron and non-ferrous materials.
C550 (C-5): Designed for heavy roughing to semi-finishing of all steels.
CM-14 (C5 Coated): Multi Layer coating TiN/TiC/TiCN/TiN for turning and milling carbon and alloy steels and tool steels. Provides longer tool life than uncoated grades.
Read More
Couldn't load pickup availability
Type:Milling Inserts
Vendor: Carbidenow
- Use for Slotting, and Slab or Straddle Milling
- 87° Parallelogram
- Fully ground milling insert
| Insert Type | Dimensions | Uncoated Grade | Coated Grade | ||||||||
| Insert | Radius | C520 | C550 | Price | CM14 | Price | |||||
| Style | I.C. | I.W. | ( r ) | EDP# | EDP# | 10 Pc Box | EDP# | 10 Pc Box | |||
| CTA-2 | 0.355 | 5/32 | 1/64 | C42350 | C42352 | $27.10 | C42354 | $37.10 | |||
| CTA-2 | 0.355 | 5/32 | 1/32 | C42356 | C42358 | $27.10 | C42360 | $37.10 | |||
| CTA-2 | 0.355 | 5/32 | 3/32 | C42362 | C42364 | $27.10 | C42366 | $37.10 | |||
| CTA-2 | 0.355 | 5/32 | 1/8 | C42368 | C42370 | $27.10 | C42372 | $37.10 | |||
| CTA-4 | 0.460 | 3/16 | 1/32 | C42374 | C42376 | $41.60 | C42378 | $52.60 | |||
| CTA-4 | 0.460 | 3/16 | 3/32 | C42380 | C42382 | $41.60 | C42384 | $52.60 | |||
| CTA-4 | 0.460 | 3/16 | 1/8 | C42386 | C42388 | $41.60 | C42390 | $52.60 | |||
| CTA-6 | 0.685 | 3/16 | 1/32 | C42392 | C42394 | $55.50 | C42396 | $71.95 | |||
| CTA-6 | 0.685 | 3/16 | 3/32 | C42398 | C42400 | $55.50 | C42402 | $71.95 | |||
| CTA-6 | 0.685 | 3/16 | 1/8 | C42404 | C42406 | $55.50 | C42408 | $71.95 | |||
| CTA-8 | 0.750 | 3/16 | 1/32 | C42410 | C42412 | $89.95 | C42414 | $116.95 | |||
| CTA-8 | 0.750 | 3/16 | 1/32 | C42416 | C42418 | $89.95 | C42420 | $116.95 | |||
| CTA-8 | 0.750 | 3/16 | 1/8 | C42422 | C42424 | $89.95 | C42426 | $116.95 |
