CPMT (Box of 10)
Regular price
$28.80 USD
Regular price
Sale price
$28.80 USD
Unit price
per
Shipping calculated at checkout.

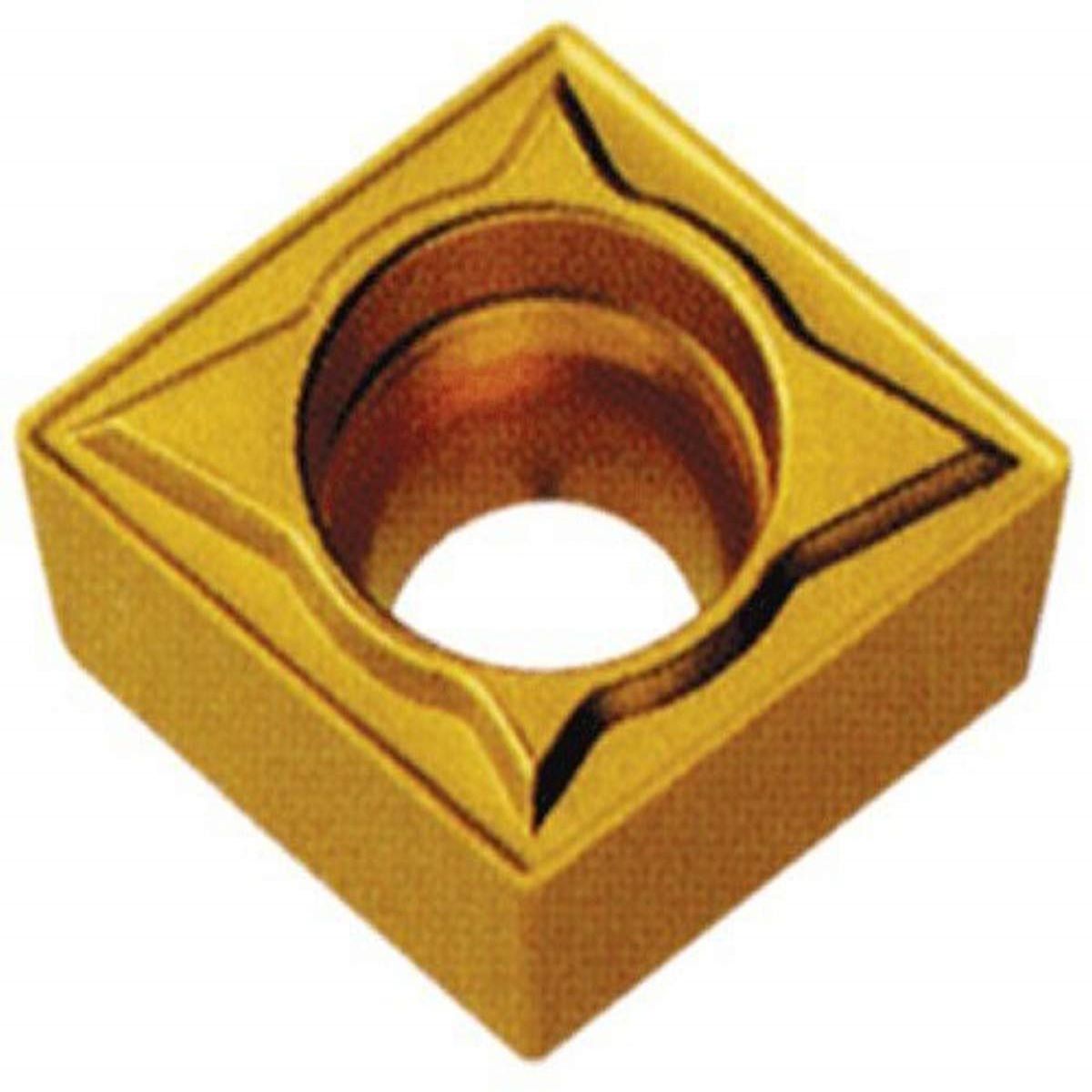

Price is for 10 Pc Box. Picture on display is of a Coated Insert.
C520 (C-2): General purpose grade designed for cast iron and non-ferrous materials.
C550 (C-5): Designed for heavy roughing to semi-finishing of all steels.
CM-14 (C5 Coated): Multi Layer coating TiN/TiC/TiCN/TiN for turning and milling carbon and alloy steels and tool steels. Provides longer tool life than uncoated grades.
Read More
Couldn't load pickup availability
Type:Turning Inserts
Vendor: Carbidenow
- Chipbreaker Type CF-Finishing - 11° Relief Angle
- Screw-On Style Inserts - 80° Diamond with Chipbreaker
- Single Sided insert with molded chip breaker
- Used for turning and finishing on a wide range of materials
- Feed range .005 to .015 IPR
| Insert Type | Dimensions | Uncoated Grade | Coated Grade | ||||||||
| Insert | Corner | Thru | C520 | C550 | Price | CM14 | Price | ||||
| Style | I.C. | Width | Radius | Hole | EDP# | EDP# | 10 Pc Box | EDP# | 10 Pc Box | ||
| CPMT-21.505 | 1/4 | 3/32 | 0.008 | 0.110 | C40376 | C40380 | $28.80 | C40384 | $35.95 | ||
| CPMT-21.51 | 1/4 | 3/32 | 1/64 | 0.110 | C40388 | C40392 | $28.80 | C40396 | $35.95 | ||
| CPMT-32.505 | 3/8 | 5/32 | 0.008 | 0.173 | C40400 | C40404 | $32.90 | C40408 | $42.90 | ||
| CPMT-32.51 | 3/8 | 5/32 | 1/64 | 0.173 | C40412 | C40416 | $32.90 | C40420 | $42.90 | ||
| CPMT-32.52 | 3/8 | 5/32 | 1/32 | 0.173 | C40424 | C40428 | $32.90 | C40432 | $42.90 |
