CPGM (Box of 10)
Regular price
$33.80 USD
Regular price
Sale price
$33.80 USD
Unit price
per
Shipping calculated at checkout.

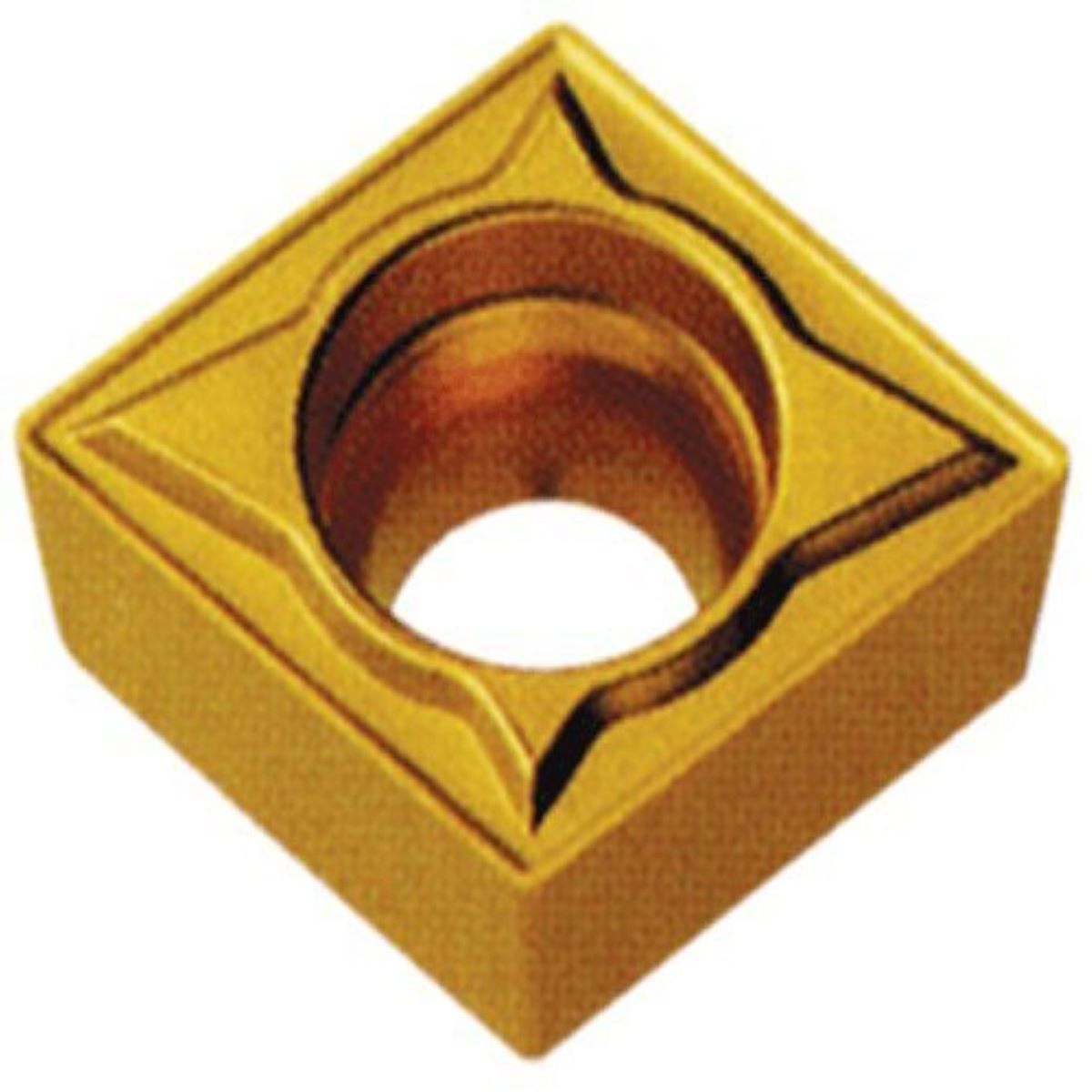

Price is for 10 Pc Box. Picture on display is of a Coated Insert.
C520 (C-2): General purpose grade designed for cast iron and non-ferrous materials.
C550 (C-5): Designed for heavy roughing to semi-finishing of all steels.
CM-14 (C5 Coated): Multi Layer coating TiN/TiC/TiCN/TiN for turning and milling carbon and alloy steels and tool steels. Provides longer tool life than uncoated grades.
Read More
Couldn't load pickup availability
Type:Turning Inserts
Vendor: Carbidenow
- Single sided with molded chip breaker - Screw-on Insert
- For a wide range of materials, soft materials and exotic alloys
- 11° Relief Angle - 80° Diamond with Chipbreaker
| Insert Type | Dimensions | Uncoated Grade | Coated Grade | ||||||||
| Insert | Corner | Thru | C520 | C550 | Price | CM14 | Price | ||||
| Style | I.C. | Width | Radius | Hole | EDP# | EDP# | 10 Pc Box | EDP# | 10 Pc Box | ||
| CPGM-21.50.5 | 1/4 | 3/32 | 0.008 | 0.110 | C40316 | C40320 | $33.80 | C40324 | $41.95 | ||
| CPGM-21.51 | 1/4 | 3/32 | 1/64 | 0.110 | C40328 | C40332 | $33.80 | C40336 | $41.95 | ||
| CPGM-21.52 | 1/4 | 3/32 | 1/32 | 0.110 | C40340 | C40344 | $33.80 | C40348 | $41.95 | ||
| CPGM-32.51 | 3/8 | 3/8 | 1/64 | 0.173 | C40352 | C40356 | $35.70 | C40360 | $44.70 | ||
| CPGM-32.52 | 3/8 | 3/8 | 1/32 | 0.173 | C40364 | C40368 | $35.70 | C40372 | $44.70 |
