CNMP (Box of 10)
Regular price
$41.70 USD
Regular price
Sale price
$41.70 USD
Unit price
per
Shipping calculated at checkout.

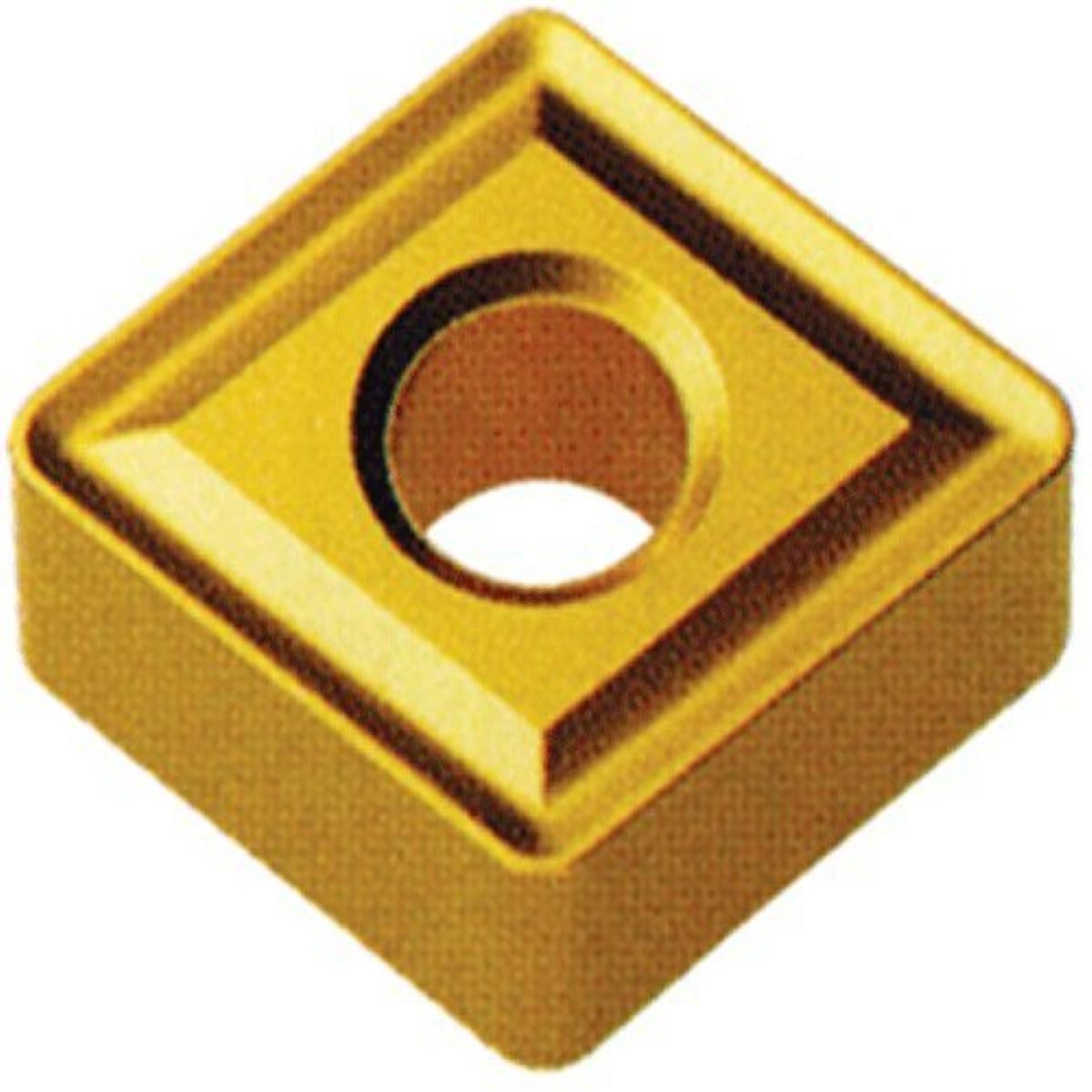

Price is for 10 Pc Box. Picture on display is of a Coated Insert.
C520 (C-2): General purpose grade designed for cast iron and non-ferrous materials.
C550 (C-5): Designed for heavy roughing to semi-finishing of all steels.
CM-14 (C5 Coated): Multi Layer coating TiN/TiC/TiCN/TiN for turning and milling carbon and alloy steels and tool steels. Provides longer tool life than uncoated grades.
Read More
Couldn't load pickup availability
Type:Turning Inserts
Vendor: Carbidenow
- 80° Diamond with Chipbreaker - Combo Pin and Clamp Insert
- Extra Positive rake cutting edge when compared to CNMG
- Can be used to machine materials like Stainless Steel and Low carbon steels
| Insert Type | Dimensions | Uncoated Grade | Coated Grade | ||||||||
| Insert | Corner | Thru | C520 | C550 | Price | CM14 | Price | ||||
| Style | I.C. | Width | Radius | Hole | EDP# | EDP# | 10 Pc Box | EDP# | 10 Pc Box | ||
| CNMP-431 | 1/2 | 3/16 | 1/64 | 0.203 | C44650 | C44652 | $41.70 | C44656 | 52.95 | ||
| CNMP-432 | 1/2 | 3/16 | 1/32 | 0.203 | C44658 | C44660 | $41.70 | C44664 | $52.95 | ||
| CNMP-433 | 1/2 | 3/16 | 3/64 | 0.203 | C44666 | C44668 | $42.70 | C44672 | $53.95 | ||
| CNMP-642 | 3/4 | 1/4 | 1/32 | 0.312 | C44674 | C44676 | $70.95 | C44680 | $90.95 | ||
| CNMP-643 | 3/4 | 1/4 | 3/64 | 0.312 | C44682 | C44684 | $70.95 | C44688 | $90.95 |
