CCMT (Box of 10)
Regular price
$25.60 USD
Regular price
Sale price
$25.60 USD
Unit price
per
Shipping calculated at checkout.

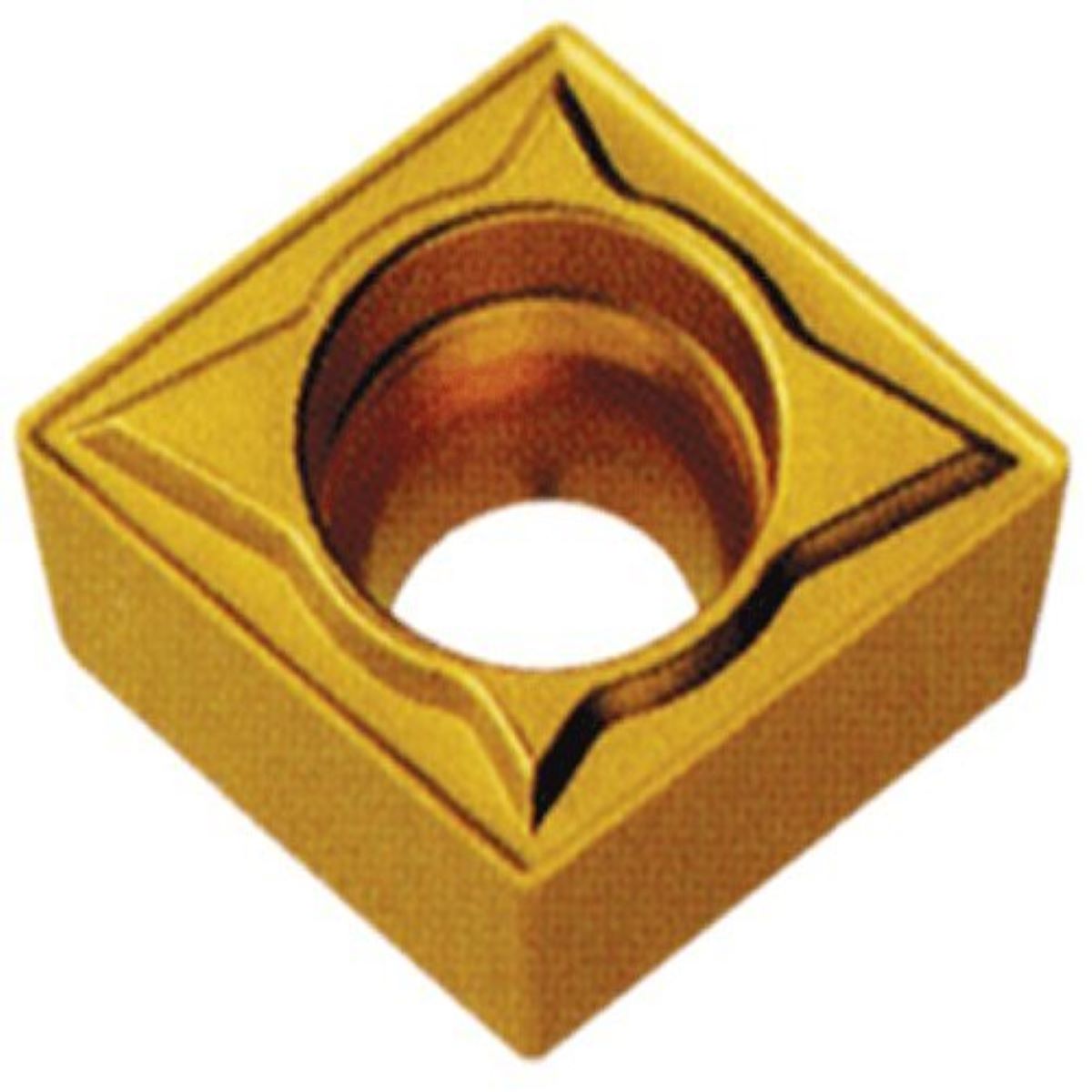

Price is for 10 Pc Box. Picture on display is of a Coated Insert.
C520 (C-2): General purpose grade designed for cast iron and non-ferrous materials.
C550 (C-5): Designed for heavy roughing to semi-finishing of all steels.
CM-14 (C5 Coated): Multi Layer coating TiN/TiC/TiCN/TiN for turning and milling carbon and alloy steels and tool steels. Provides longer tool life than uncoated grades.
Read More
Couldn't load pickup availability
Type:Turning Inserts
Vendor: Carbidenow
- Screw-On Style Turning Insert
- Used for semi-finishing and finishing on a wide range of materials
- 80° Diamond Single Sided Insert with molded chipbreaker
| Insert Type | Dimensions | Uncoated Grade | Coated Grade | ||||||||
| Insert | Corner | Thru | C520 | C550 | Price | CM14 | Price | ||||
| Style | I.C. | Width | Radius | Hole | EDP# | EDP# | 10 Pc Box | EDP# | 10 Pc Box | ||
| CCMT-21.50.5 | 1/4 | 3/32 | 0.008 | 0.110 | C40088 | C40092 | $25.60 | C40096 | $32.60 | ||
| CCMT-21.51 | 1/4 | 3/32 | 1/64 | 0.110 | C40100 | C40104 | $25.60 | C40108 | $32.60 | ||
| CCMT-21.52 | 1/4 | 3/32 | 1/32 | 0.110 | C40112 | C40116 | $25.60 | C40120 | $32.60 | ||
| CCMT-32.50.5 | 3/8 | 5/32 | 0.008 | 0.173 | C40121 | C40122 | $26.80 | C40125 | $34.80 | ||
| CCMT-32.51 | 3/8 | 5/32 | 1/64 | 0.173 | C40124 | C40128 | $26.80 | C40132 | $34.80 | ||
| CCMT-32.52 | 3/8 | 5/32 | 1/32 | 0.173 | C40136 | C40140 | $26.80 | C40144 | $34.80 | ||
| CCMT-431 | 1/2 | 3/16 | 1/64 | 0.217 | C40146 | C40148 | $34.95 | C40150 | $45.95 | ||
| CCMT-432 | 1/2 | 3/16 | 1/32 | 0.217 | C40152 | C40154 | $34.95 | C40156 | $45.95 |
