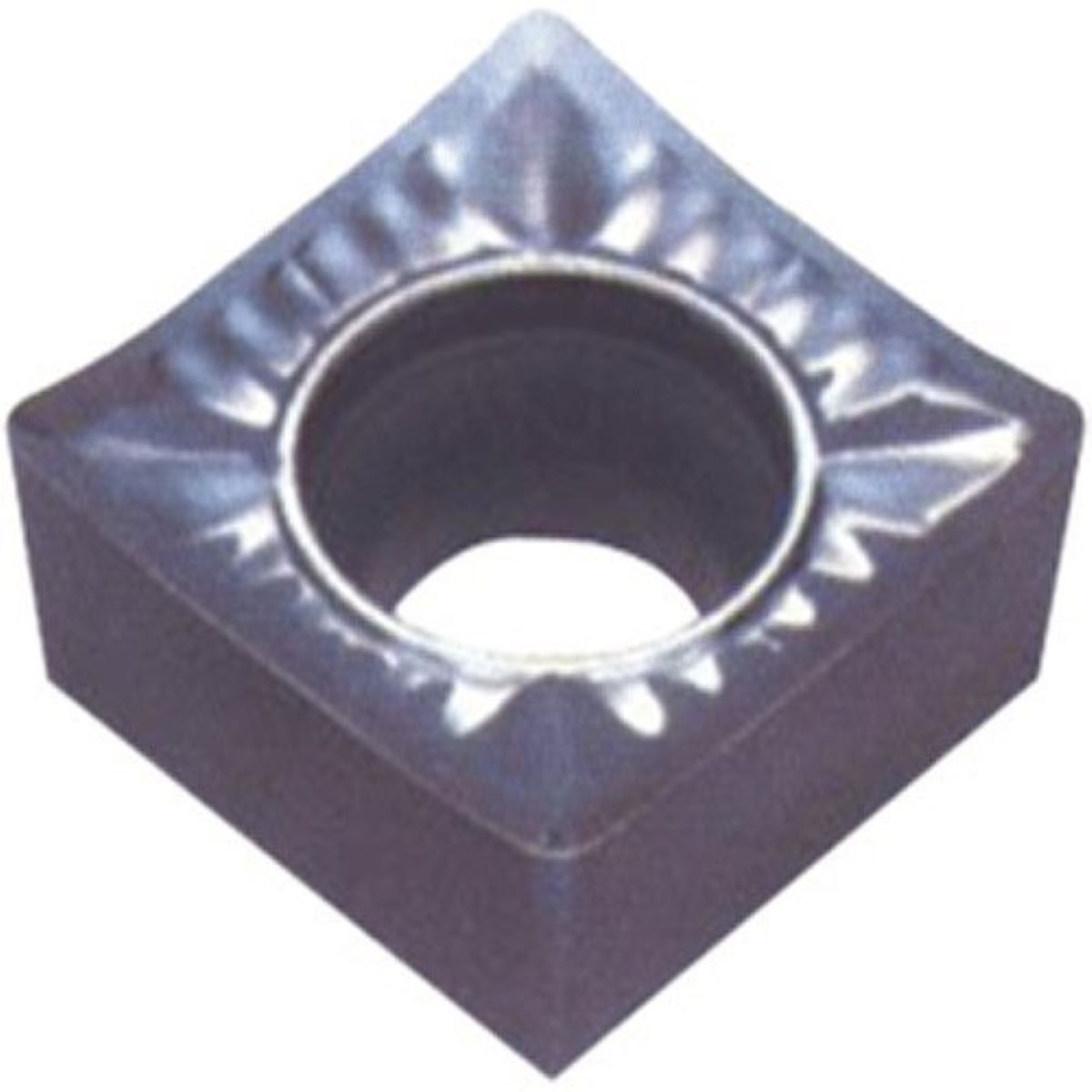

- 80° Diamond Single sided Insert with molded chipbreaker
- Screw-on Style Insert
- Hi-Polish Turning Inserts for Aluminum
| Insert Type | Dimensions | Aluminum Grade | |||||||||
| Insert | Corner | Thru | C520 | Price | |||||||
| Style | I.C. | Width | Radius | Hole | EDP# | 10 Pc Box | |||||
| CCGX-21.505 | 1/4 | 3/32 | 0.008 | 0.110 | C71097 | $40.99 | |||||
| CCGX-21.51 | 1/4 | 3/32 | 1/64 | 0.110 | C72000 | $40.99 | |||||
| CCGX-32.505 | 3/8 | 5/32 | 0.008 | 0.173 | C72003 | $41.99 | |||||
| CCGX-32.51 | 3/8 | 5/32 | 1/64 | 0.173 | C72006 | $41.99 | |||||
| CCGX-32.52 | 3/8 | 5/32 | 1/32 | 0.173 | C72012 | $41.99 | |||||
| CCGX-431 | 1/2 | 3/16 | 1/64 | 0.203 | C72018 | $45.99 | |||||
| CCGX-432 | 1/2 | 3/16 | 1/32 | 0.203 | C72024 | $45.99 |
