APKT (Box of 10)
Regular price
$53.50 USD
Regular price
Sale price
$53.50 USD
Unit price
per
Shipping calculated at checkout.

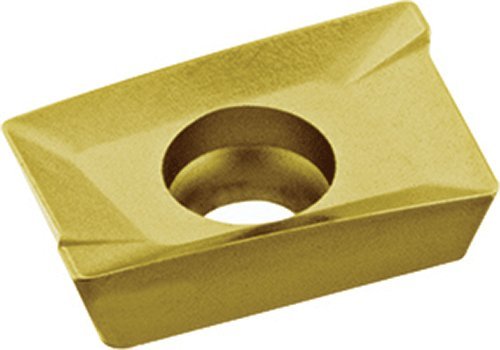

Price is for 10 Pc Box. Picture on display is of a Coated Insert.
C520 (C-2): General purpose grade designed for cast iron and non-ferrous materials.
C550 (C-5): Designed for heavy roughing to semi-finishing of all steels.
CM-14 (C5 Coated): Multi Layer coating TiN/TiC/TiCN/TiN for turning and milling carbon and alloy steels and tool steels. Provides longer tool life than uncoated grades.
Read More
Couldn't load pickup availability
Type:Milling Inserts
Vendor: Carbidenow
- 85° Parallelogram Milling Insert.
-For Light Cutting of Steel and Cast Iron at Elevated Speeds.
| Insert Type | Dimensions | Uncoated Grade | Coated Grade | ||||||||
| Insert | Radius | Hole | C520 | C550 | Price | CM14 | Price | ||||
| Style | I.C. | I.W. | (r) | Size (d) | EDP# | EDP# | 10 Pc Box | EDP# | 10 Pc Box | ||
| APKT-1003 PDR-HM | 0.441 | 0.264 | 0.020 | 0.110 | C42732 | C42734 | $29.50 | C42736 | $41.50 | ||
| APKT-1505 PDR-HM | 0.625 | 0.375 | 0.0315 | 0.175 | C42740 | C42742 | $47.40 | C42746 | $59.95 | ||
| APKT-1604 PDR-HM | 0.625 | 0.375 | 0.0315 | 0.175 | C42748 | C42750 | $41.50 | C42754 | $53.50 |
