Endmills - 5 Flute Adder Ultra Performance
Regular price
$16.57 USD
Regular price
Sale price
$16.57 USD
Unit price
per
Shipping calculated at checkout.

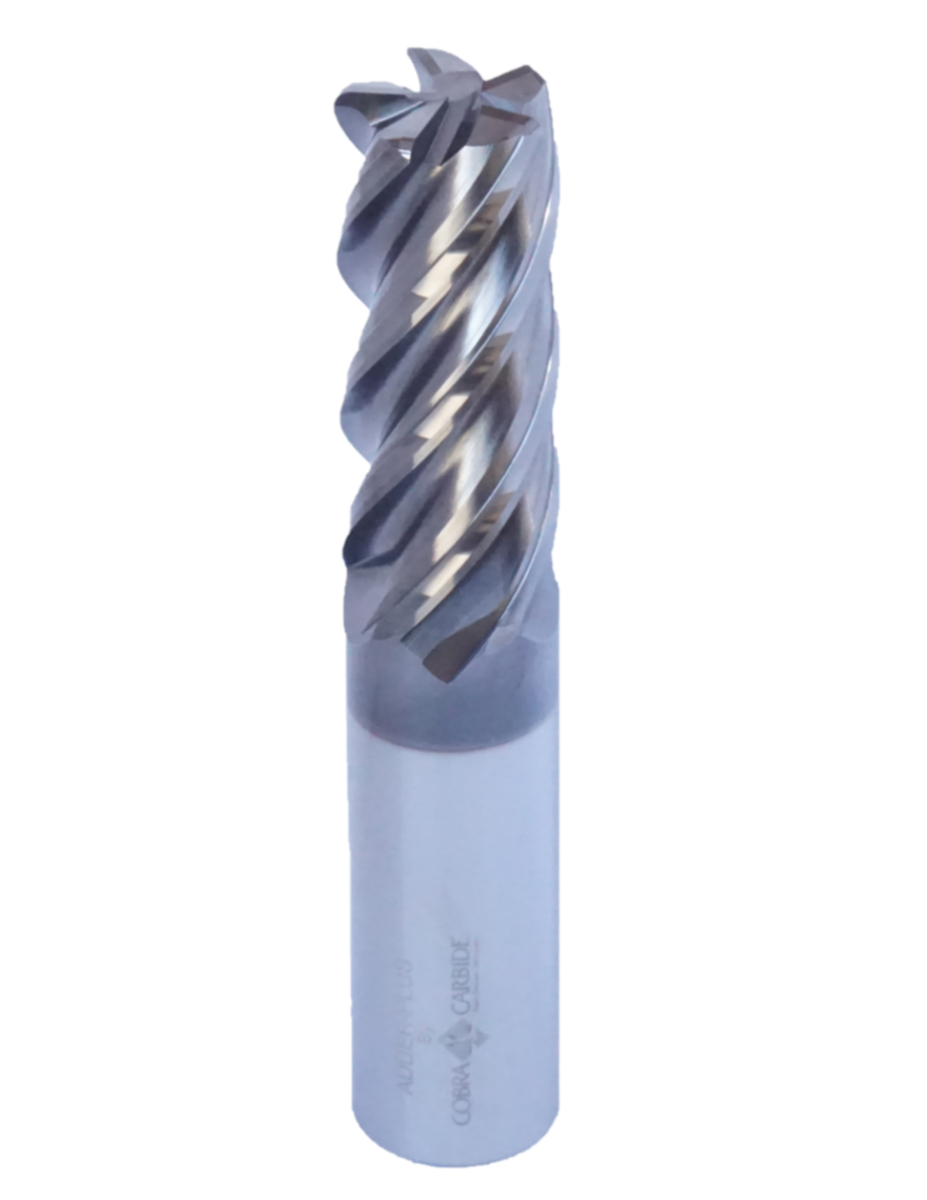

Made in USA. Qty: 1. Picture on display is of AlCrN Coated End Mill.
AlCrN ( Aluminium Chromium Nitride) coating: Remarkable wear resistance and is
top level all-round coating for cutting, punching, and die casting
Read More
Couldn't load pickup availability
Type:Endmills - 5 Flute Adder Ultra Performance
Vendor: Carbidenow
- Made In USA - 40° Helix
- Utilizes optimal helix angle, flute geometry, and core thickness
- Tool rigidity to increase the stability during cutting action
- Unequal flutes helps to reducing the chatter and vobration
- AlCrN coating for improved tool life
- Manufactured from premium submicron carbide
- Ultra High Performance suitable for Roughing and Finishing a wide range of
materials
| DESCRIPTION | END CUT | COATED | |||||||||
| Cut | Shank | Length | Overall | Square or | AlCrN | Sale | |||||
| Dia | Dia | of Cut | Length | Radius | EDP# | Price | |||||
| 1/8 | 1/8 | 1/2 | 1-1/2 | Square | C18911 | $16.57 | |||||
| 1/8 | 1/8 | 1/2 | 1-1/2 | R .015 | C18900 | $16.99 | |||||
| 3/16 | 3/16 | 5/8 | 2 | Square | C18933 | $22.26 | |||||
| 3/16 | 3/16 | 5/8 | 2 | R .015 | C18902 | $22.99 | |||||
| 1/4 | 1/4 | 3/4 | 2-1/2 | Square | C18917 | $28.98 | |||||
| 1/4 | 1/4 | 3/4 | 2-1/2 | R .020 | C18905 | $31.22 | |||||
| 5/16 | 5/16 | 13/16 | 2-1/2 | Square | C18934 | $39.17 | |||||
| 5/16 | 5/16 | 13/16 | 2-1/2 | R .030 | C18912 | $40.17 | |||||
| 3/8 | 3/8 | 1 | 2-1/2 | Square | C18963 | $44.19 | |||||
| 3/8 | 3/8 | 1 | 2-1/2 | R .030 | C18918 | $46.44 | |||||
| 1/2 | 1/2 | 1-1/4 | 3 | Square | C18936 | $68.26 | |||||
| 1/2 | 1/2 | 1-1/4 | 3 | R .030 | C18927 | $73.29 | |||||
| 5/8 | 5/8 | 1-1/4 | 3-1/2 | Square | C18956 | $95.72 | |||||
| 5/8 | 5/8 | 1-1/4 | 3-1/2 | R .040 | C18932 | $97.12 | |||||
| 3/4 | 3/4 | 1-1/2 | 4 | Square | C18939 | $166.28 | |||||
| 3/4 | 3/4 | 1-1/2 | 4 | R .060 | C18938 | $174.56 | |||||
| 1 | 1 | 1-1/2 | 4 | Square | C18941 | $250.47 | |||||
| 1 | 1 | 1-1/2 | 4 | R .060 | C18942 | $286.17 |
