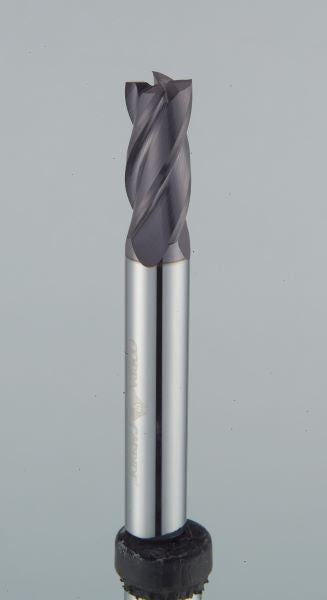

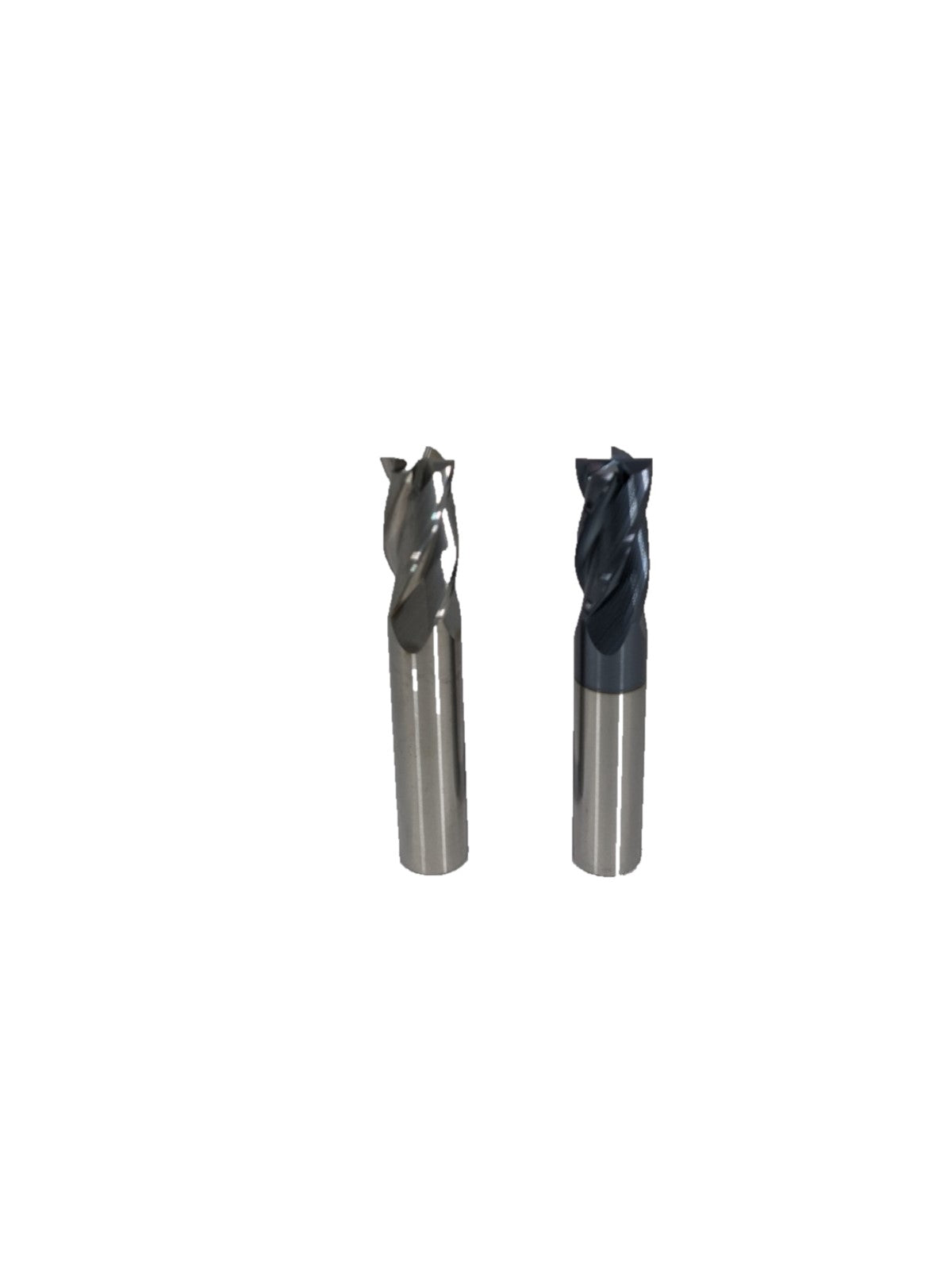

Endmills - 4 Flute Square Single Standard
Regular price
$11.99 USD
Regular price
Sale price
$11.99 USD
Unit price
per
Shipping calculated at checkout.
Made in USA. Qty: 1.
AlTiN ( aluminium-titanium-nitride coating) : Oxidation Resistance and Thermal Stability. Protection against abrasion and adhesion. Good frictional properties.
Read More
Couldn't load pickup availability
Type:
Vendor: Carbidenow
- Made in USA
- 30° Helix - Center cutting geometry
- Designed for increased chip removal rate
- Used for finishing operations
- Designed for milling, slotting, profiling and trace milling
- Manufactured from premium submicron carbide
| Description | Square | Coated | |||||||||
| Cut | Shank | Length of | Overall | Uncoated | Sale | AlTiN | Sale | ||||
| Dia | Dia | Cut | Length | EDP# | Price | EDP# | Price | ||||
| 1/64 | 1/8 | 1/32 | 1-1/2 | C22004 | $11.99 | C22012 | $13.99 | ||||
| 1/32 | 1/8 | 1/8 | 1-1/2 | C22028 | $6.99 | C22036 | $8.45 | ||||
| 3/64 | 1/8 | 1/8 | 1-1/2 | C22052 | $6.99 | C22060 | $8.45 | ||||
| 1/16 | 1/8 | 3/16 | 1-1/2 | C22076 | $5.99 | C22084 | $8.79 | ||||
| 5/64 | 1/8 | 1/4 | 1-1/2 | C22090 | $5.99 | C22096 | $8.79 | ||||
| 3/32 | 1/8 | 3/8 | 1-1/2 | C22112 | $5.99 | C22120 | $8.79 | ||||
| 7/64 | 1/8 | 3/8 | 1-1/2 | C22124 | $5.99 | C22132 | $8.79 | ||||
| 1/8 | 1/8 | 1/2 | 1-1/2 | C22148 | $4.33 | C22156 | $5.85 | ||||
| 9/64 | 3/16 | 9/16 | 2 | C22196 | $8.69 | C22204 | $10.60 | ||||
| 5/32 | 3/16 | 9/16 | 2 | C22220 | $8.69 | C22228 | $10.60 | ||||
| 3/16 | 3/16 | 5/8 | 2 | C22256 | $7.78 | C22264 | $9.59 | ||||
| 7/32 | 1/4 | 5/8 | 2-1/2 | C22340 | $12.37 | C22348 | $15.29 | ||||
| 1/4 | 1/4 | 3/4 | 2-1/2 | C22376 | $10.22 | C22384 | $13.77 | ||||
| 9/32 | 5/16 | 3/4 | 2-1/2 | C22448 | $16.96 | C22444 | $22.50 | ||||
| 5/16 | 5/16 | 13/16 | 2-1/2 | C22484 | $14.08 | C22492 | $17.79 | ||||
| 11/32 | 3/8 | 1 | 2-1/2 | C22532 | $20.02 | C22540 | $25.50 | ||||
| 3/8 | 3/8 | 1 | 2-1/2 | C22556 | $17.23 | C22564 | $22.24 | ||||
| 13/32 | 7/16 | 1 | 2-3/4 | C22616 | $28.99 | C22624 | $35.99 | ||||
| 7/16 | 7/16 | 1 | 2-3/4 | C22640 | $26.10 | C22648 | $32.95 | ||||
| 15/32 | 1/2 | 1 | 3 | C22673 | $34.99 | C22675 | $41.50 | ||||
| 1/2 | 1/2 | 1 | 3 | C22688 | $25.99 | C22696 | $32.99 | ||||
| 17/32 | 9/16 | 1-1/4 | 3-1/2 | C22754 | $57.99 | C23683 | $68.50 | ||||
| 9/16 | 9/16 | 1-1/8 | 3-1/2 | C22760 | $51.99 | C22768 | $62.99 | ||||
| 5/8 | 5/8 | 1-1/4 | 3-1/2 | C22784 | $54.99 | C22792 | $65.50 | ||||
| 21/32 | 3/4 | 1-1/2 | 4 | C22830 | $105.99 | C22833 | $121.99 | ||||
| 11/16 | 3/4 | 1-3/8 | 4 | C22832 | $94.99 | C22840 | $107.99 | ||||
| 3/4 | 3/4 | 1-1/2 | 4 | C22856 | $78.99 | C22864 | $90.99 | ||||
| 7/8 | 7/8 | 1-1/2 | 4 | C22904 | $113.99 | C22912 | $133.99 | ||||
| 1 | 1 | 1-1/2 | 4 | C22916 | $136.99 | C22924 | $154.99 |
