Endmills - 4 Flute Ball Single End
Regular price
$15.52 USD
Regular price
Sale price
$15.52 USD
Unit price
per
Shipping calculated at checkout.

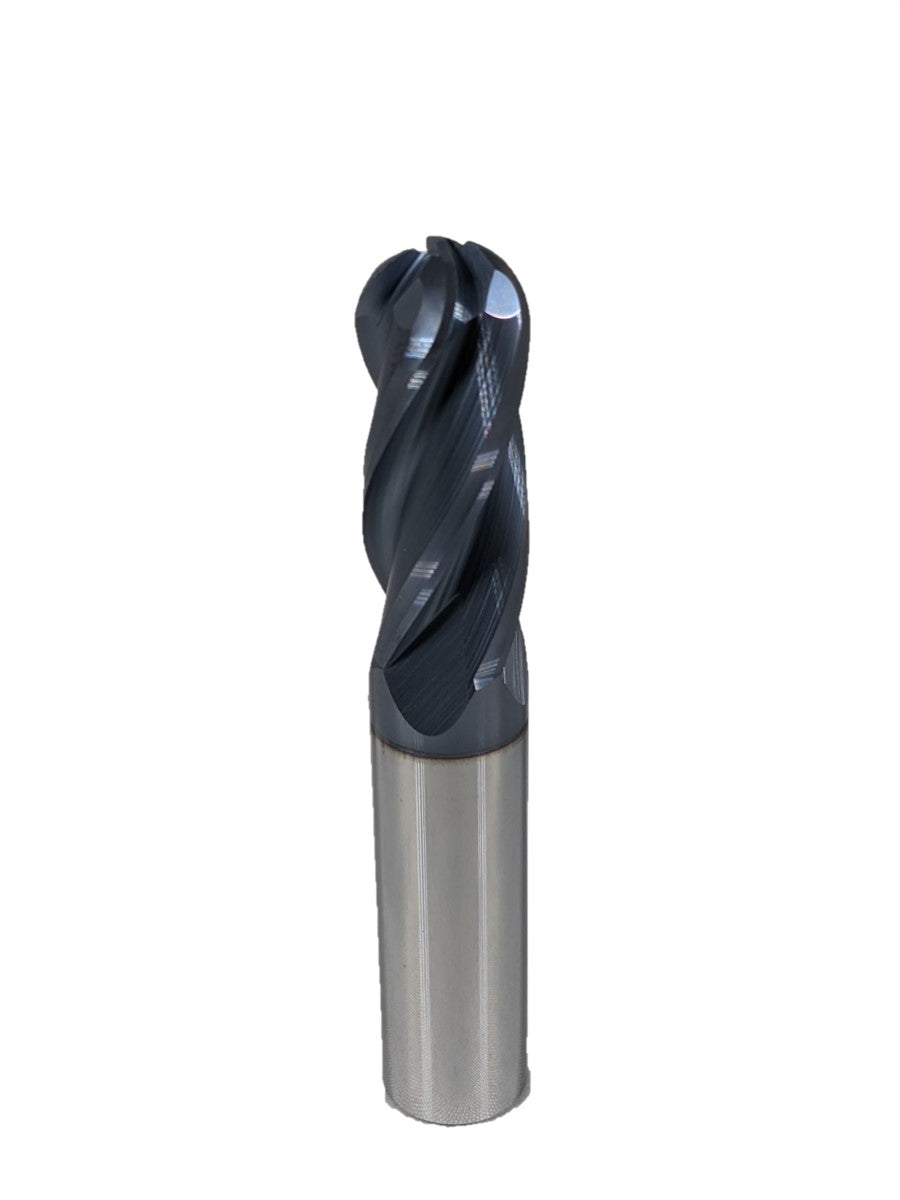

Made in USA. Qty: 1. Picture on display is of AlTiN Coated End Mill.
AlTiN ( aluminium-titanium-nitride coating) : Oxidation Resistance and Thermal Stability.
Protection against abrasion and adhesion. Good frictional properties.
Read More
Couldn't load pickup availability
Type:Endmills - 4 Flute Ball Single End
Vendor: Carbidenow
- Made in USA
- 30° Helix - Center cutting geometry
- Designed for increased chip removal rate
- Used for finishing operations
- Designed for milling, slotting, profiling and trace milling
- Manufactured from premium submicron carbide
| DESCRIPTION | BALL END | COATED | |||||||||
| Cut | Shank | Length | Overall | Uncoated | Sale | AlTiN | Sale | ||||
| Dia | Dia | of Cut | Length | EDP# | Price | EDP# | Price | ||||
| 1/64 | 1/8 | 1/32 | 1-1/2 | C23006 | $15.52 | C23014 | $17.44 | ||||
| 1/32 | 1/8 | 1/8 | 1-1/2 | C23018 | $9.01 | C23026 | $10.95 | ||||
| 3/64 | 1/8 | 1/8 | 1-1/2 | C23042 | $8.69 | C23050 | $10.62 | ||||
| 1/16 | 1/8 | 3/16 | 1-1/2 | C23066 | $7.35 | C23074 | $9.29 | ||||
| 5/64 | 1/8 | 1/4 | 1-1/2 | C23090 | $7.35 | C23098 | $9.29 | ||||
| 3/32 | 1/8 | 3/8 | 1-1/2 | C23114 | $7.35 | C23122 | $9.29 | ||||
| 7/64 | 1/8 | 3/8 | 1-1/2 | C23138 | $7.35 | C23146 | $9.29 | ||||
| 1/8 | 1/8 | 1/2 | 1-1/2 | C23162 | $5.41 | C23170 | $7.28 | ||||
| 9/64 | 3/16 | 9/16 | 2 | C23222 | $10.38 | C23230 | $12.32 | ||||
| 5/32 | 3/16 | 9/16 | 2 | C23246 | $10.38 | C23254 | $12.32 | ||||
| 11/64 | 3/16 | 5/8 | 2 | C23258 | $10.38 | C23266 | $12.32 | ||||
| 3/16 | 3/16 | 5/8 | 2 | C23282 | $9.10 | C23290 | $10.93 | ||||
| 7/32 | 1/4 | 5/8 | 2-1/2 | C23342 | $14.48 | C23350 | $17.98 | ||||
| 1/4 | 1/4 | 3/4 | 2-1/2 | C23378 | $12.64 | C23386 | $15.36 | ||||
| 9/32 | 5/16 | 3/4 | 2-1/2 | C23438 | $20.17 | C23446 | $25.57 | ||||
| 5/16 | 5/16 | 13/16 | 2-1/2 | C23474 | $17.20 | C23482 | $22.21 | ||||
| 11/32 | 3/8 | 1 | 2-1/2 | C23510 | $24.48 | C23518 | $31.22 | ||||
| 3/8 | 3/8 | 1 | 2-1/2 | C23534 | $21.53 | C23542 | $27.80 | ||||
| 13/32 | 7/16 | 1 | 2-3/4 | C23558 | $32.77 | C23566 | $39.55 | ||||
| 7/16 | 7/16 | 1 | 2-3/4 | C23582 | $31.10 | C23590 | $37.87 | ||||
| 15/32 | 1/2 | 1 | 3 | C23619 | $39.36 | C23621 | $46.13 | ||||
| 1/2 | 1/2 | 1 | 3 | C23630 | $33.33 | C23638 | $41.91 | ||||
| 9/16 | 9/16 | 1-1/8 | 3-1/2 | C23690 | $58.89 | C23698 | $70.38 | ||||
| 5/8 | 5/8 | 1-1/4 | 3-1/2 | C23714 | $61.77 | C23722 | $71.90 | ||||
| 11/16 | 3/4 | 1-3/8 | 4 | C23762 | $97.55 | C23770 | $121.61 | ||||
| 3/4 | 3/4 | 1-1/2 | 4 | C23786 | $93.39 | C23794 | $105.50 | ||||
| 7/8 | 7/8 | 1-1/2 | 4 | C23834 | $150.11 | C23842 | $165.98 | ||||
| 1 | 1 | 1-1/2 | 4 | C23846 | $148.95 | C23854 | $166.34 |
