Endmills - 3 Flute 42° Copperhead for Aluminum
Regular price
$10.09 USD
Regular price
Sale price
$10.09 USD
Unit price
per
Shipping calculated at checkout.

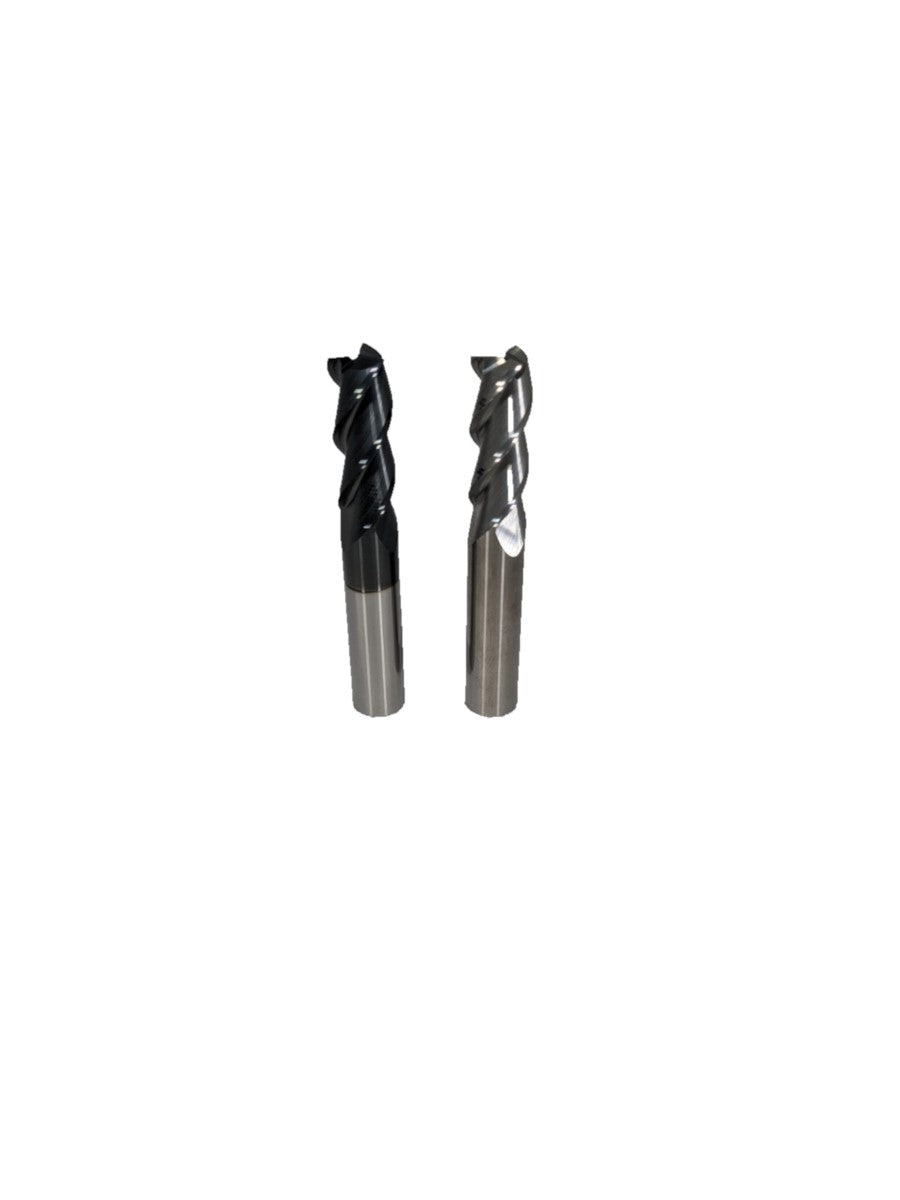

Made in USA. Picture on display is of Apache Coated End Mill.
Apache coating is top of the line Proprietary Coating.
ZrN Coating : Endmills cut faster and deliver more performance with less energy input.
Read More
Couldn't load pickup availability
Type:Endmills - 3 Flute 42° Copperhead
Vendor: Carbidenow
- Made In USA - 3 Flute 42° Helix
- Maximum metal removal and better chip evacuation
- Excellent for slotting and profiling at high speeds
- Outstanding for finishing and light roughing applications
- Special submicron grade for machining Aluminum and other Non-Ferrous materials
| DESCRIPTION | END CUT TYPE | EDP # | |||||||||
| Cut | Shank | Length | Overall | Square or | Uncoated | Sale | Apache | Sale | ZrN | Sale | |
| Dia | Dia | of Cut | Length | Radius | EDP# | Price | Coated | Price | Coated | Price | |
| 1/8 | 1/8 | 1/2 | 1-1/2 | Square | C14201 | $10.09 | C14203 | $12.84 | C14204 | $12.71 | |
| 1/8 | 1/8 | 1/2 | 1-1/2 | R .010 | C14200 | $10.63 | C14202 | $13.50 | C14205 | $13.37 | |
| 5/32 | 3/16 | 9/16 | 2 | R .010 | C14208 | $18.03 | C14210 | $21.06 | C14206 | $20.85 | |
| 3/16 | 3/16 | 5/8 | 2 | Square | C14209 | $15.33 | C14211 | $18.05 | C14207 | $17.88 | |
| 3/16 | 3/16 | 5/8 | 2 | R .010 | C14212 | $17.03 | C14214 | $20.06 | C14213 | $19.86 | |
| 7/32 | 1/4 | 3/4 | 2-1/2 | R .010 | C14220 | $25.82 | C14222 | $30.68 | C14221 | $30.37 | |
| 1/4 | 1/4 | 3/4 | 2-1/2 | Square | C14228 | $17.36 | C14230 | $21.30 | C14229 | $21.09 | |
| 1/4 | 1/4 | 3/4 | 2-1/2 | R .015 | C14224 | $19.29 | C14226 | $23.67 | C14225 | $23.43 | |
| 1/4 | 1/4 | 1-1/8 | 3 | R .015 | C14232 | $25.53 | C14234 | $29.99 | C14233 | $29.70 | |
| 9/32 | 5/16 | 7/16 | 2-1/2 | R .015 | C14236 | $27.61 | C14238 | $35.65 | C14235 | $35.29 | |
| 5/16 | 5/16 | 13/16 | 2-1/2 | Square | C14237 | $23.76 | C14239 | $31.42 | C14241 | $31.10 | |
| 5/16 | 5/16 | 13/16 | 2-1/2 | R .015 | C14240 | $25.01 | C14242 | $33.07 | C14243 | $32.74 | |
| 5/16 | 5/16 | 1-1/8 | 3 | R .015 | C14248 | $35.64 | C14250 | $43.54 | C14249 | $43.10 | |
| 3/8 | 3/8 | 1 | 2-1/2 | Square | C14253 | $26.69 | C14255 | $34.34 | C14257 | $33.99 | |
| 3/8 | 3/8 | 1 | 2-1/2 | R .015 | C14256 | $28.09 | C14258 | $36.14 | C14259 | $35.78 | |
| 3/8 | 3/8 | 1 | 2-1/2 | R .030 | C14244 | $28.09 | C14245 | $36.14 | C14246 | $35.78 | |
| 3/8 | 3/8 | 1 | 2-1/2 | R .060 | C14247 | $28.09 | C14260 | $36.14 | C14279 | $35.78 | |
| 3/8 | 3/8 | 1-1/2 | 4 | R .015 | C14264 | $35.71 | C14266 | $44.99 | C14265 | $44.54 | |
| 7/16 | 7/16 | 1 | 2-3/4 | Square | C14269 | $33.95 | C14271 | $43.52 | C14273 | $43.09 | |
| 7/16 | 7/16 | 1 | 2-3/4 | R .015 | C14272 | $35.73 | C14274 | $45.81 | C14275 | $45.36 | |
| 1/2 | 1/2 | 1-1/4 | 3 | Square | C14284 | $45.95 | C14286 | $55.53 | C14287 | $54.97 | |
| 1/2 | 1/2 | 1-1/4 | 3 | R .030 | C14288 | $48.37 | C14290 | $58.46 | C14289 | $57.87 | |
| 1/2 | 1/2 | 2 | 4 | Square | C14293 | $66.75 | C14295 | $84.43 | C14276 | $83.60 | |
| 1/2 | 1/2 | 2 | 4 | R .030 | C14296 | $68.53 | C14298 | $86.02 | C14278 | $85.16 | |
| 5/8 | 5/8 | 1-1/4 | 3-1/2 | Square | C14297 | $78.80 | C14299 | $94.20 | C14285 | $93.27 | |
| 5/8 | 5/8 | 1-1/4 | 3-1/2 | R .030 | C14300 | $82.95 | C14302 | $99.17 | C14304 | $98.18 | |
| 5/8 | 5/8 | 1-3/4 | 4 | Square | C14301 | $95.18 | C14303 | $108.64 | C14306 | $108.64 | |
| 5/8 | 5/8 | 2-1/2 | 5 | R .030 | C14308 | $119.85 | C14310 | $142.19 | C14307 | $140.76 | |
| 3/4 | 3/4 | 1-5/8 | 4 | Square | C14309 | $111.29 | C14311 | $129.65 | C14313 | $129.65 | |
| 3/4 | 3/4 | 1-5/8 | 4 | R .030 | C14312 | $117.14 | C14314 | $136.48 | C14318 | $135.12 | |
| 3/4 | 3/4 | 2-1/4 | 5 | R .030 | C14316 | $163.47 | C14315 | $189.42 | C14319 | $187.53 | |
| 1 | 1 | 1-1/2 | 4 | Square | C14317 | $180.10 | C14321 | $206.58 | C14324 | $204.51 | |
| 1 | 1 | 1-1/2 | 4 | R .030 | C14320 | $189.58 | C14322 | $217.44 | C14326 | $215.27 |
