Endmills - 4 Flute Adder Ultra Performance
Regular price
$13.31 USD
Regular price
Sale price
$13.31 USD
Unit price
per
Shipping calculated at checkout.

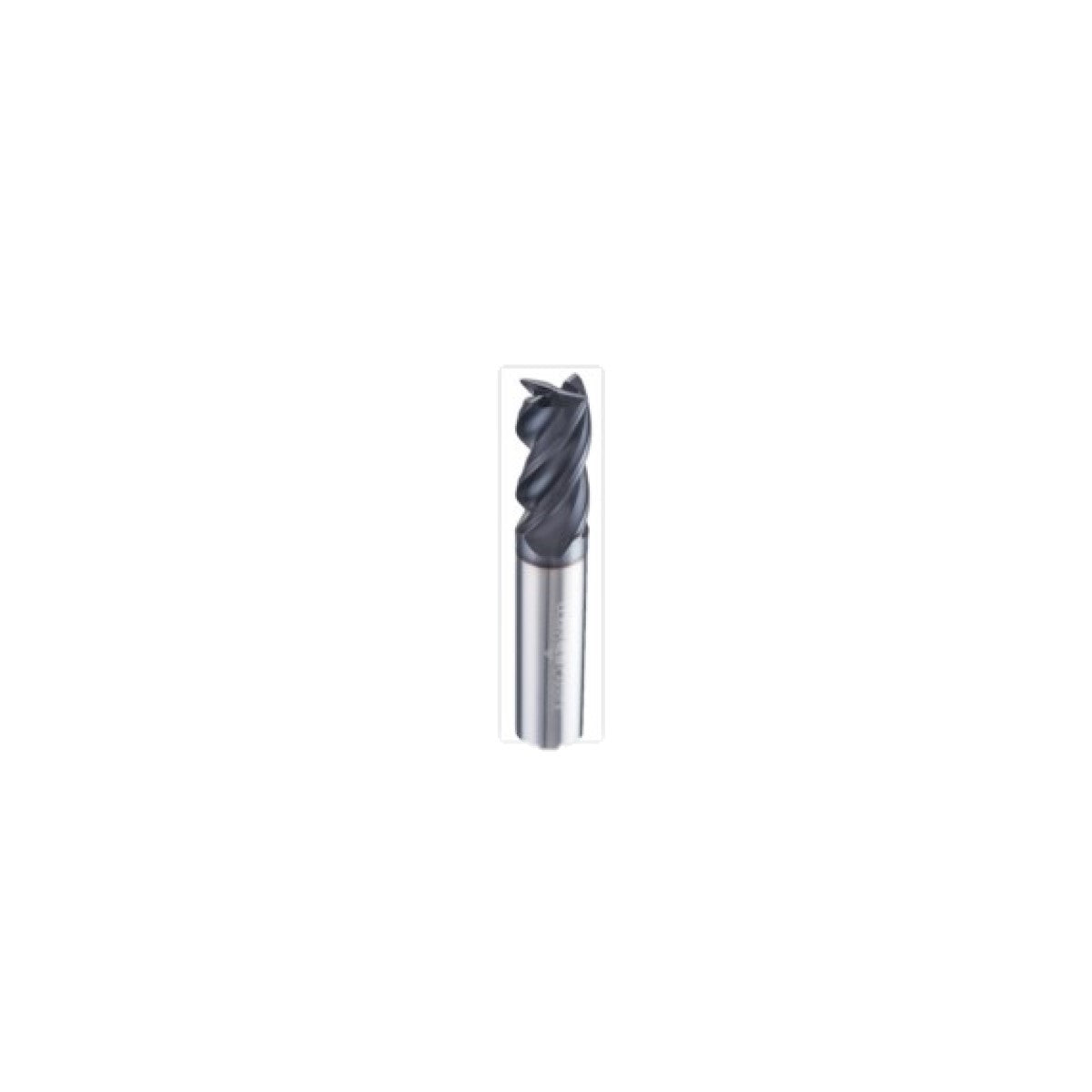

Made in USA. Qty: 1. Picture on display is of AlCrN Coated End Mill.
AlCrN ( Aluminium Chromium Nitride) coating: Remarkable wear resistance and is
top level all-round coating for cutting, punching, and die casting
Read More
Couldn't load pickup availability
Type:Endmills - 4 Flute Adder Ultra Performance
Vendor: Carbidenow
- Made In USA - 40° Helix
- Utilizes optimal helix angle, flute geometry, and core thickness
- Tool rigidity to increase the stability during cutting action
- Unequal flutes helps to reducing the chatter and vobration
- AlCrN coating for improved tool life
- Manufactured from premium submicron carbide
- Ultra High Performance suitable for Roughing and Finishing a wide range of
materials
| DESCRIPTION | END CUT | COATED | |||||||||
| Cut | Shank | Length | Overall | Square or | AlCrN | Sale | |||||
| Dia | Dia | of Cut | Length | Radius | EDP# | Price | |||||
| 1/8 | 1/8 | 1/2 | 1-1/2 | Square | C18804 | $13.31 | |||||
| 1/8 | 1/8 | 1/2 | 1-1/2 | R .015 | C18800 | $13.97 | |||||
| 3/16 | 3/16 | 5/8 | 2 | Square | C18808 | $18.26 | |||||
| 3/16 | 3/16 | 5/8 | 2 | R .015 | C18802 | $19.00 | |||||
| 1/4 | 1/4 | 3/4 | 2-1/2 | Square | C18816 | $23.76 | |||||
| 1/4 | 1/4 | 3/4 | 2-1/2 | R .020 | C18806 | $25.60 | |||||
| 5/16 | 5/16 | 13/16 | 2-1/2 | Square | C18840 | $32.95 | |||||
| 5/16 | 5/16 | 13/16 | 2-1/2 | R .030 | C18812 | $33.97 | |||||
| 3/8 | 3/8 | 1 | 2-1/2 | Square | C18860 | $36.24 | |||||
| 3/8 | 3/8 | 1 | 2-1/2 | R .030 | C18816 | $38.08 | |||||
| 1/2 | 1/2 | 1-1/4 | 3 | Square | C18870 | $55.97 | |||||
| 1/2 | 1/2 | 1-1/4 | 3 | R .030 | C18827 | $60.10 | |||||
| 5/8 | 5/8 | 1-1/4 | 3-1/2 | Square | C18880 | $78.50 | |||||
| 5/8 | 5/8 | 1-1/4 | 3-1/2 | R .040 | C18832 | $79.64 | |||||
| 3/4 | 3/4 | 1-1/2 | 4 | Square | C18886 | $136.35 | |||||
| 3/4 | 3/4 | 1-1/2 | 4 | R .060 | C18839 | $143.15 | |||||
| 1 | 1 | 1-1/2 | 4 | Square | C18894 | $205.38 | |||||
| 1 | 1 | 1-1/2 | 4 | R .060 | C18842 | $234.65 |
