Endmills - 2 Flute Square Single Standard
Regular price
$11.99 USD
Regular price
Sale price
$11.99 USD
Unit price
per
Shipping calculated at checkout.

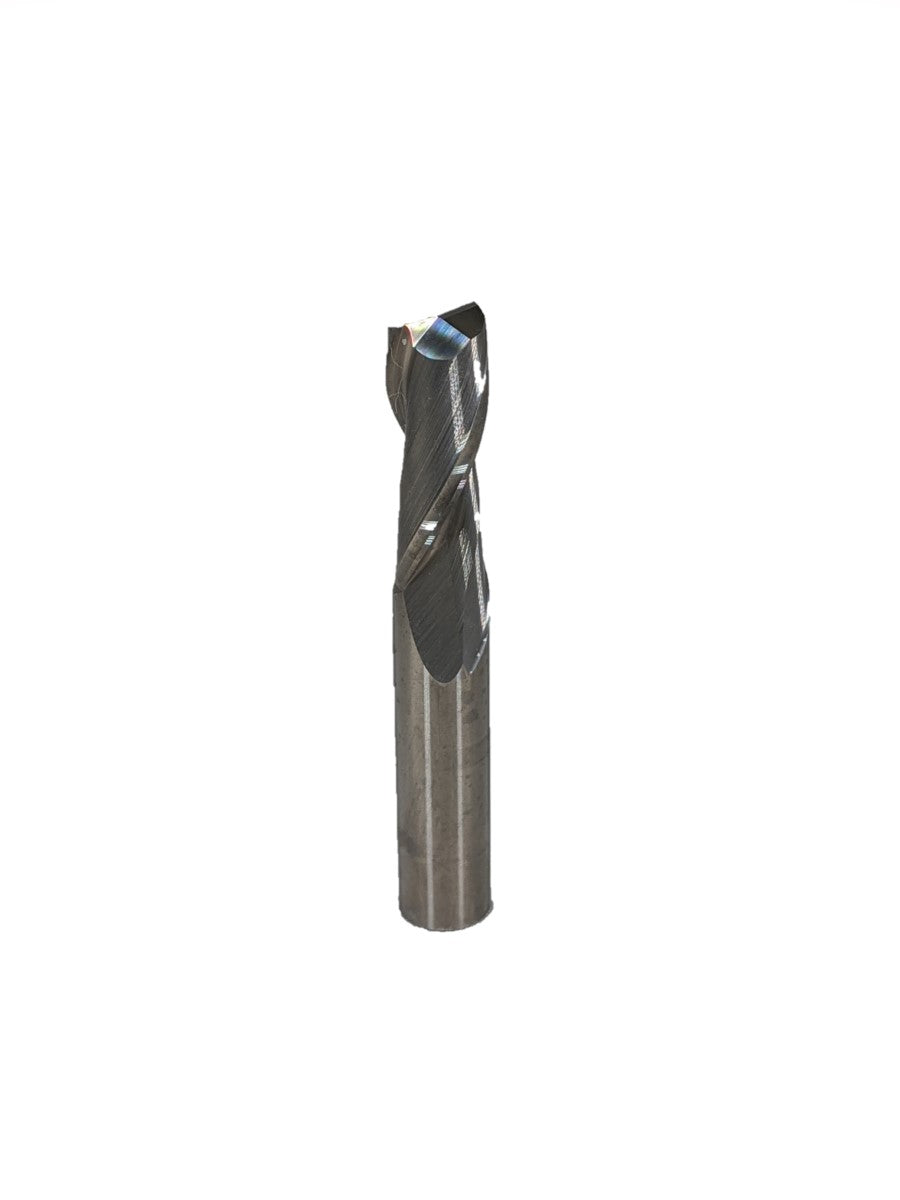

Made in USA. Qty: 1. Picture on display is of AlTiN Coated End Mill.
AlTiN ( aluminium-titanium-nitride coating) : Oxidation Resistance and Thermal Stability.
Protection against abrasion and adhesion. Good frictional properties.
Read More
Couldn't load pickup availability
Type:Endmills - 2 Flute Square Single Standard
Vendor: Carbidenow
- Made In USA
- Center cutting geometry - 30° Helix
- Capable to do slotting, profiling, and plunging operations
- Manufactured from premium submicron grain carbide
| DESCRIPTION | SQUARE END | COATED | |||||||||
| Cut | Shank | Length | Overall | Uncoated | Sale | AlTiN | Sale | ||||
| Dia | Dia | of Cut | Length | EDP# | Price | EDP# | Price | ||||
| 1/64 | 1/8 | 1/32 | 1-1/2 | C20005 | $11.99 | C20013 | $13.99 | ||||
| 1/32 | 1/8 | 1/8 | 1-1/2 | C20029 | $6.99 | C20037 | $8.45 | ||||
| 3/64 | 1/8 | 1/8 | 1-1/2 | C20053 | $6.99 | C20061 | $8.45 | ||||
| 1/16 | 1/8 | 3/16 | 1-1/2 | C20077 | $5.99 | C20085 | $8.79 | ||||
| 5/64 | 1/8 | 1/4 | 1-1/2 | C20089 | $6.99 | C20097 | $8.79 | ||||
| 3/32 | 1/8 | 3/8 | 1-1/2 | C20113 | $5.99 | C20121 | $8.79 | ||||
| 7/64 | 1/8 | 3/8 | 1-1/2 | C20125 | $6.99 | C20133 | $8.79 | ||||
| 1/8 | 1/8 | 1/2 | 1-1/2 | C20149 | $4.33 | C20157 | $5.85 | ||||
| 9/64 | 3/16 | 9/16 | 2 | C20209 | $8.69 | C20217 | $10.60 | ||||
| 5/32 | 3/16 | 9/16 | 2 | C20233 | $8.69 | C20241 | $10.60 | ||||
| 3/16 | 3/16 | 5/8 | 2 | C20269 | $7.78 | C20277 | $9.59 | ||||
| 7/32 | 1/4 | 5/8 | 2-1/2 | C20353 | $12.37 | C20361 | $15.29 | ||||
| 1/4 | 1/4 | 3/4 | 2-1/2 | C20389 | $10.22 | C20397 | $13.77 | ||||
| 9/32 | 5/16 | 3/4 | 2-1/2 | C20461 | $16.96 | C20469 | $22.50 | ||||
| 5/16 | 5/16 | 13/16 | 2-1/2 | C20497 | $14.08 | C20505 | $17.79 | ||||
| 11/32 | 3/8 | 1 | 2-1/2 | C20545 | $20.02 | C20553 | $25.50 | ||||
| 3/8 | 3/8 | 1 | 2-1/2 | C20569 | $17.23 | C20577 | $22.24 | ||||
| 13/32 | 7/16 | 1 | 2-3/4 | C20629 | $28.99 | C20637 | $35.99 | ||||
| 7/16 | 7/16 | 1 | 2-3/4 | C20653 | $26.10 | C20661 | $32.95 | ||||
| 15/32 | 1/2 | 1 | 3 | C20686 | $34.99 | C20687 | $41.50 | ||||
| 1/2 | 1/2 | 1 | 3 | C20701 | $25.99 | C20709 | $32.99 | ||||
| 17/32 | 9/16 | 1-1/4 | 3-1/2 | C20131 | $57.99 | C20132 | $68.50 | ||||
| 9/16 | 9/16 | 1-1/8 | 3-1/2 | C20773 | $51.99 | C20781 | $62.99 | ||||
| 5/8 | 5/8 | 1-1/4 | 3-1/2 | C20797 | $54.99 | C20805 | $65.50 | ||||
| 11/16 | 3/4 | 1-3/8 | 4 | C20845 | $94.99 | C20853 | $107.99 | ||||
| 3/4 | 3/4 | 1-1/2 | 4 | C20869 | $78.99 | C20877 | $90.99 | ||||
| 7/8 | 7/8 | 1-1/2 | 4 | C20905 | $113.99 | C20913 | $133.99 | ||||
| 1 | 1 | 1-1/2 | 4 | C20917 | $136.99 | C20925 | $154.99 |
