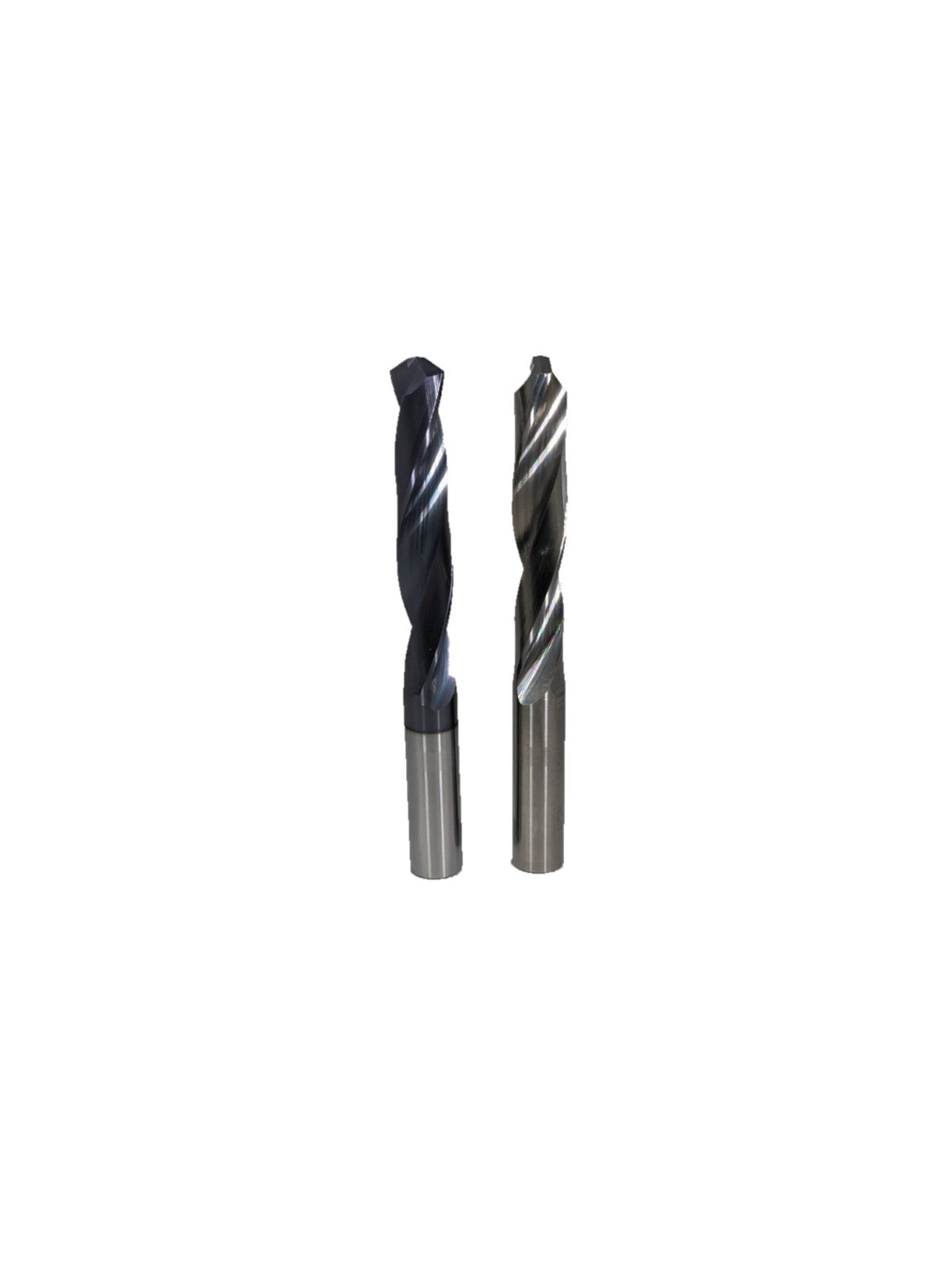

Drills - Jobber Letter Size
Regular price
$19.37 USD
Regular price
Sale price
$19.37 USD
Unit price
per
Shipping calculated at checkout.
Made in USA. Qty: 1.
AlTiN ( aluminium-titanium-nitride coating) : Oxidation Resistance and Thermal Stability.
Protection against abrasion and adhesion. Good frictional properties.
Read More
Couldn't load pickup availability
Type:Drills - Jobber Letter Size
Vendor: Carbidenow


- Made in USA
- Manufactured from premium submicron grain carbide
- Precision ground carbide drills are designed for
high feed rate and good chip evacuation
- 118° four facet point angle, right hand cut, right hand spiral
DESCRIPTION | UNCOATED GRADE | COATED GRADE | |||||||||
Letter | Decimal | Flute | Overall | Bright | Sale | AlTiN | Sale | ||||
Size | Equiv. | Length | Length | EDP# | Price | EDP# | Price | ||||
A | 0.2340 | 2 | 3-1/4 | C30590 | $19.37 | C30591 | $25.75 | ||||
B | 0.2380 | 2 | 3-1/4 | C30602 | $20.70 | C30603 | $27.09 | ||||
C | 0.2420 | 2 | 3-1/4 | C30610 | $20.79 | C30611 | $27.16 | ||||
D | 0.2460 | 2 | 3-1/4 | C30618 | $21.02 | C30619 | $27.40 | ||||
E | 0.2500 | 2 | 3-1/4 | C30626 | $20.32 | C30628 | $23.00 | ||||
F | 0.2570 | 2 | 3-1/4 | C30638 | $27.32 | C30639 | $37.87 | ||||
G | 0.2610 | 2-1/8 | 3-1/2 | C30646 | $27.71 | C30647 | $38.26 | ||||
H | 0.2660 | 2-1/2 | 3-1/2 | C30658 | $29.45 | C30659 | $40.00 | ||||
I | 0.2720 | 2-1/8 | 3-1/2 | C30670 | $29.45 | C30671 | $40.00 | ||||
J | 0.2770 | 2-1/8 | 3-1/2 | C30678 | $31.85 | C30679 | $37.87 | ||||
K | 0.2810 | 2-1/8 | 3-1/2 | C30686 | $31.85 | C30687 | $40.00 | ||||
L | 0.2900 | 2-1/8 | 3-1/2 | C30702 | $31.85 | C30703 | $41.18 | ||||
M | 0.2950 | 2-3/8 | 3-3/4 | C30710 | $34.76 | C30711 | $43.53 | ||||
N | 0.3020 | 2-3/8 | 3-3/4 | C30726 | $34.76 | C30727 | $46.38 | ||||
O | 0.3160 | 2-3/8 | 3-3/4 | C30750 | $36.93 | C30751 | $46.99 | ||||
P | 0.3230 | 2-3/8 | 3-3/4 | C30762 | $36.93 | C30763 | $46.99 | ||||
Q | 0.3320 | 2-1/2 | 4 | C30778 | $39.98 | C30779 | $47.47 | ||||
R | 0.3390 | 2-1/2 | 4 | C30790 | $39.98 | C30791 | $47.47 | ||||
S | 0.3480 | 2-1/2 | 4 | C30806 | $39.98 | C30807 | $56.92 | ||||
T | 0.3580 | 2-3/4 | 4-1/4 | C30818 | $44.60 | C30819 | $57.01 | ||||
U | 0.3680 | 2-3/4 | 4-1/4 | C30838 | $49.78 | C30839 | $59.78 | ||||
V | 0.3770 | 2-3/4 | 4-1/4 | C30854 | $49.78 | C30855 | $61.17 | ||||
W | 0.3860 | 2-7/8 | 4-1/2 | C30870 | $49.78 | C30871 | $62.19 | ||||
X | 0.3970 | 2-7/8 | 4-1/2 | C30886 | $54.32 | C30887 | $70.31 | ||||
Y | 0.4040 | 2-7/8 | 4-1/2 | C30898 | $56.69 | C30899 | $70.47 | ||||
Z | 0.4130 | 2-7/8 | 4-1/2 | C30914 | $56.69 | C30915 | $71.08 |
